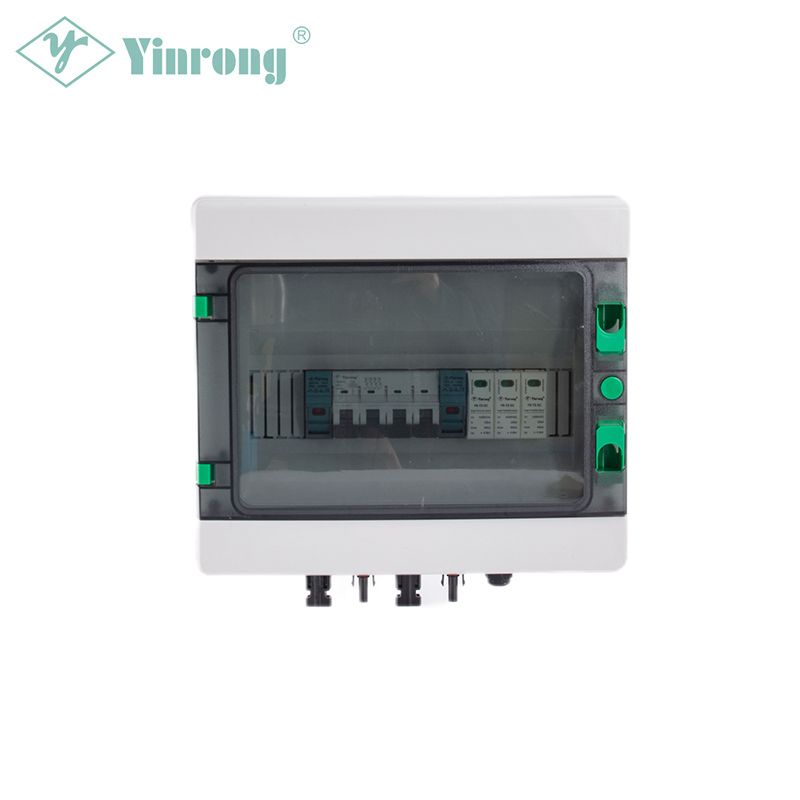

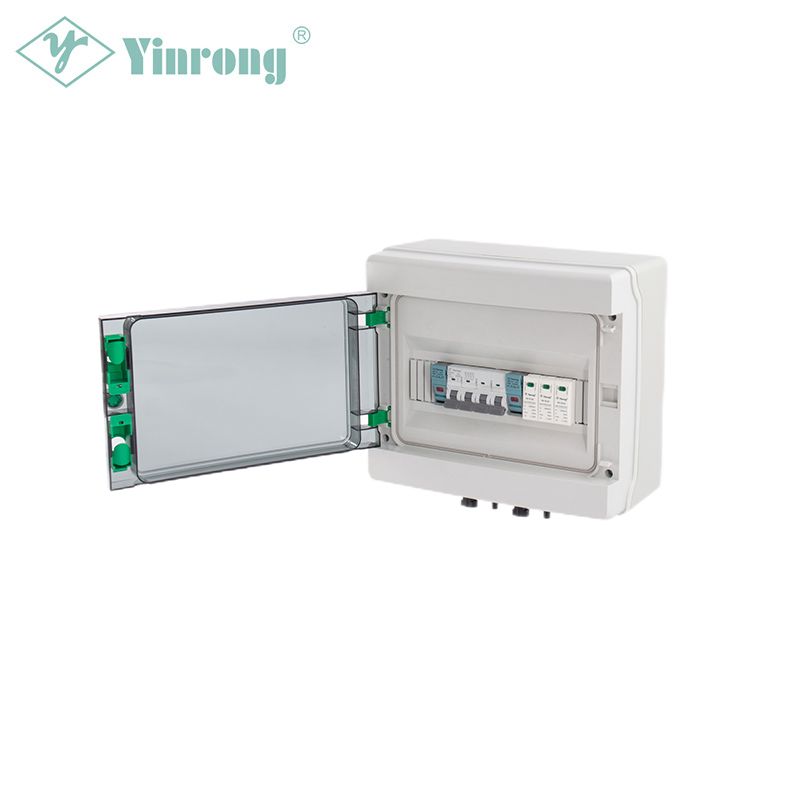

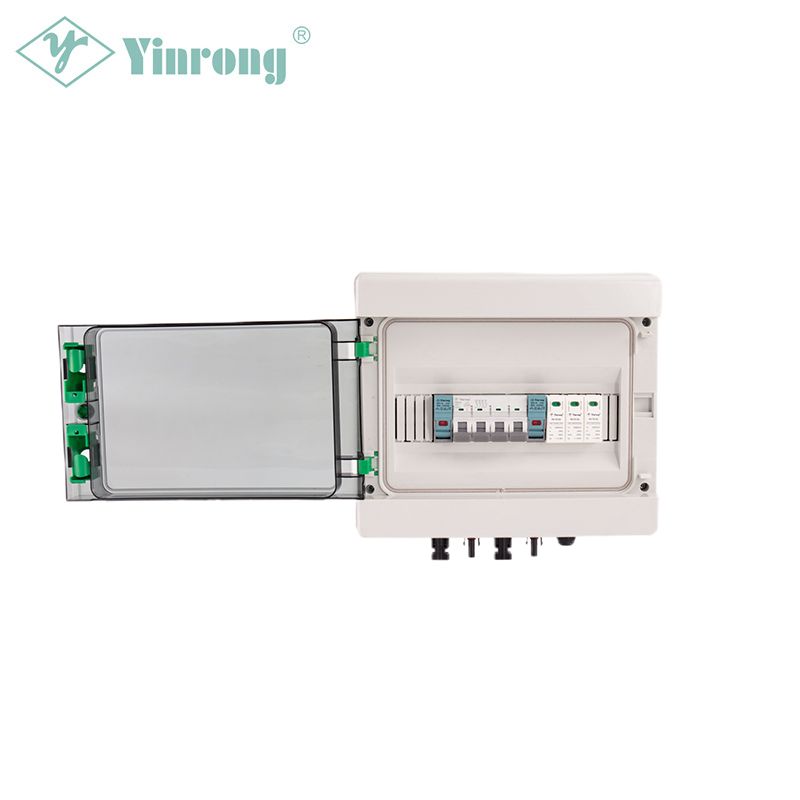

1 In 1 Out 1000VDC Solar Combiner Box

Zhejiang Galaxy Fuse Co., Ltd. specializes in the production and manufacturing of the 1 In 1 Out 1000VDC Solar Combiner Box. Elevate your solar energy system with the state-of-the-art 1 In 1 Out 1000VDC Solar Combiner Box. Specifically engineered for seamless integration, this compact yet powerful component boasts a streamlined design and a 1000VDC voltage rating. Acting as a vigilant guardian, the 1 In 1 Out 1000VDC Solar Combiner Box goes beyond mere circuit protection, ensuring the longevity and safety of your solar installation by warding off overcurrent, short circuits, and electrical faults. Serving as a robust shield for solar panels, it preserves efficiency amid shading and environmental variations while also playing a crucial role in inverter protection, regulating power input to prevent voltage fluctuations. In essence, this combiner box signifies a commitment to efficiency, safety, and innovation in the realm of solar energy, simplifying solar string integration and ensuring robust protection for your entire solar system—paving the way for enhanced performance and reliability.

Send Inquiry

Product Description

Upgrade your solar energy system with the cutting-edge 1 In 1 Out 1000VDC Solar Combiner Box. Crafted for seamless integration, this compact marvel, known as the 1 In 1 Out 1000VDC Solar Combiner Box, features a streamlined design and a 1000VDC voltage rating. Beyond advanced circuit protection, it acts as a vigilant guardian, ensuring the longevity and safety of your solar installation by preventing overcurrent, short circuits, and electrical faults. This robust box also serves as a shield for solar panels, preserving efficiency in the face of shading and environmental variations. Additionally, it plays a pivotal role in inverter protection, regulating power input to prevent voltage fluctuations and safeguard the inverter. In essence, the 1 In 1 Out 1000VDC Solar Combiner Box represents a dedication to efficiency, safety, and innovation in the dynamic world of solar energy. With its streamlined design and 1000VDC voltage rating, this combiner box simplifies solar string integration and ensures robust protection for your entire solar system, promising elevated performance and reliability in your solar installation.

Rated Voltage

DC 1000V

Input Current

15A

Output Current

20A

Strings

One string

Equipment

-DC Fuse

-DC MCB

-DC SPD

-MC4 connector

Applications

- Solar photovoltaic system

Country of Origin

People’s Republic of China

Technical Parameters

Model name	YRDB-PV 1/1
Electrical parameters
System maximum dc voltage	500VDC	1000VDC
Maximum input current for each string	15A
Maximum input strings	1 string
Maximum output switch current	16A	20A
Number of inverters/MPPT	1 inverter/MPPT
Number of output strings	1 string
Lightning Protection
Category of test	Ⅱgrade protection
Nominal discharge current(In)	20KA
Maximum discharge current(Imax)	40KA
Voltage protection level(Up)	2.2KV	3.6KV
Maximum continuous operating current(Uc)	600VDC	1000VDC
Pole	2P	2P/3P
Structure characteristic	Plug-push module
system
Protection grade	IP65
Output switch	DC isolation switch/DC circuit breaker(optional)
MC4 waterproof connection	Standard
PV dc fuse	Standard
PV dc surge protector	Standard
Monitoring module	Optional
Preventing diode	Optional
Box material	PVC
Installation method	Wall mounting type
Operating temperature	-25℃---55℃
Altitude	2km
Permissible relative humidity	0-95%,no condensation

Schematic Diagram

Wiring
