NH3 L 1500VDC gPV Fuse

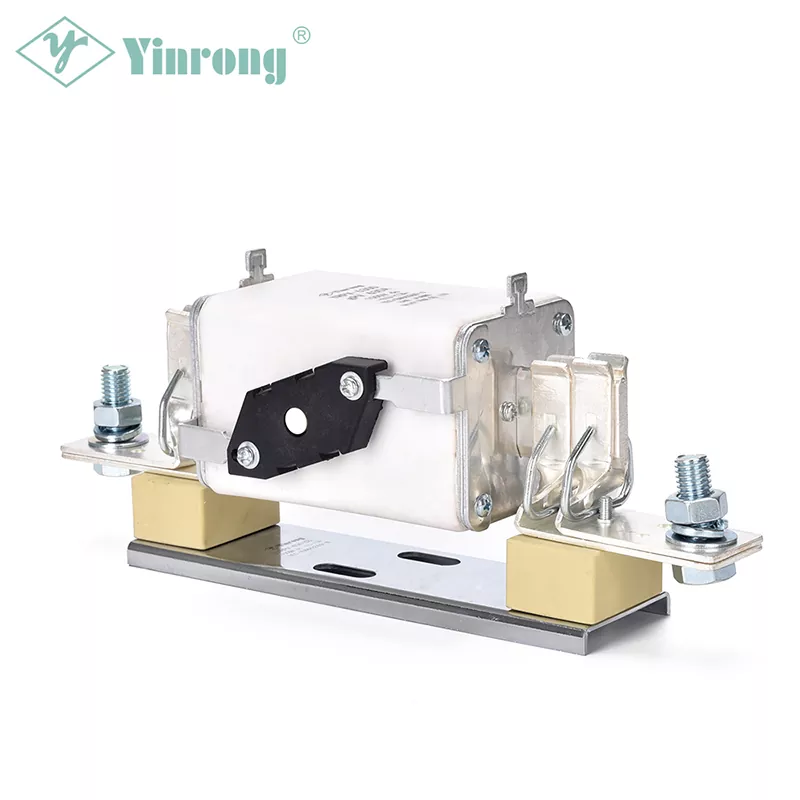

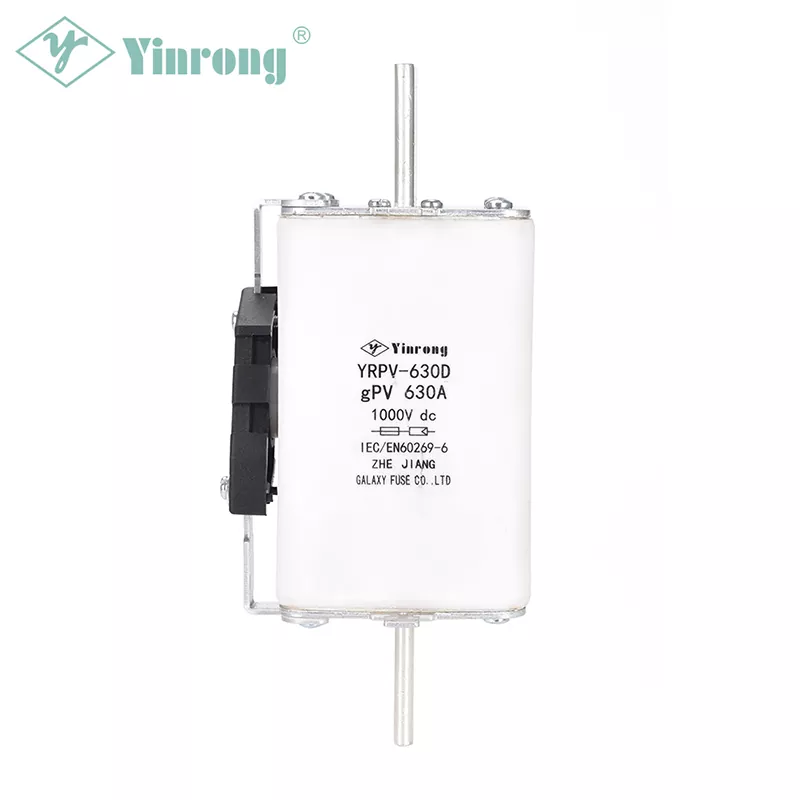

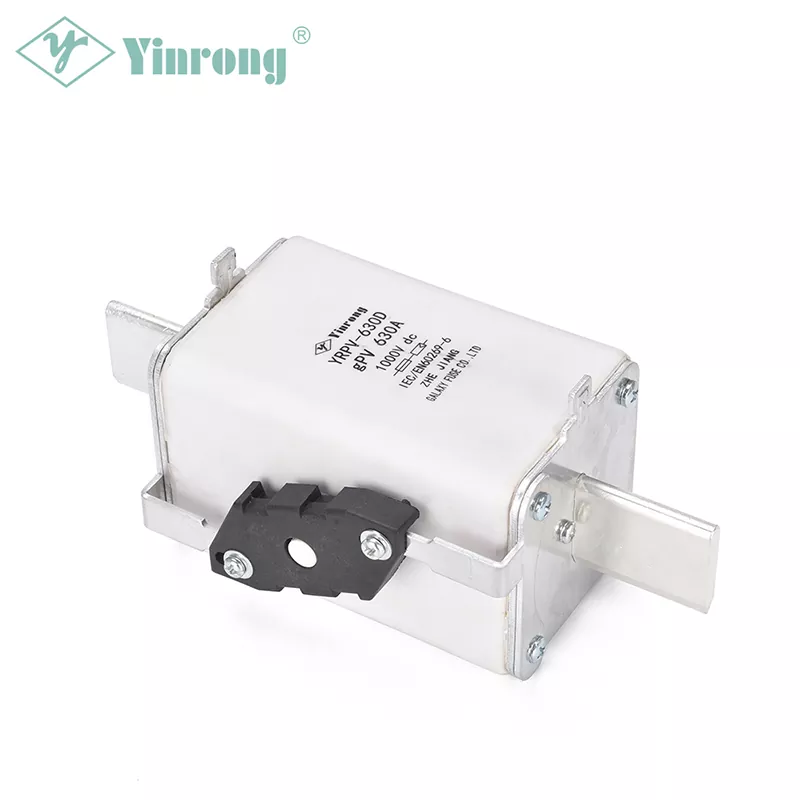

Yinrong is a leading China NH3 L 1500VDC gPV Fuse manufacturers. Yinrong NH3 L 1500VDC gPV Fuse is a safety protection solution specifically designed for photovoltaic installations. It can be used in sub-array, array, or inverter DC input of solar power systems. The fuse range includes NH0, NH2XL, and NH3L fuse links with rated currents ranging from 40A to 630A. These fuses are rated for a voltage of 1500V DC and provide protection against overloads and short-circuits, conforming to the gPV class as per IEC 60269 and GB/T 13539.6 standards. The NH3 L 1500VDC gPV Fuse is constructed with a ceramic body that can withstand high internal pressure and thermal shock.
Send Inquiry
Product Description
Yinrong is NH3 L 1500VDC gPV Fuse manufacturers and suppliers in China who can wholesale NH3 L 1500VDC gPV Fuse. Yinrong NH3 L 1500VDC gPV Fuse plays a critical role in ensuring the safety and reliable operation of photovoltaic installations. Specifically designed for high-voltage DC applications, this fuse provides essential protection against overloads and short circuits in sub-arrays, arrays, and inverter DC inputs. With its ceramic body, the NH3 L 1500VDC gPV Fuse can withstand internal pressure and thermal shock, making it highly durable and reliable.
Rated Voltage
1000VDC/1500VDC
Rated Current
315A-630A
Breaking Capacity
50kA
Operating Class
gPV
Standard/Compliances
-IEC60269-6
-GB/T 13539.6
Compatible Fuse holder/Accessories
YRPV-630D Fuse holder
-Striker
-Microswitch
Applications of NH3 L 1500VDC gPV Fuse
- DC Photovoltaic Combiner Box
-PV string/array level protection
-In-line PV module protection
-Battery charge controllers
Country of Origin
Zhejiang,China
Prameters
|
Model/Size |
Rated Voltage (V) |
Rated Current (A) |
Breaking Capacity (kA) |
|---|---|---|---|
|
YRPV-630D Fuse Link |
1000VDC/1500VDC |
315A-630A |
1000VDC/ 1500VDC：20kA |
|

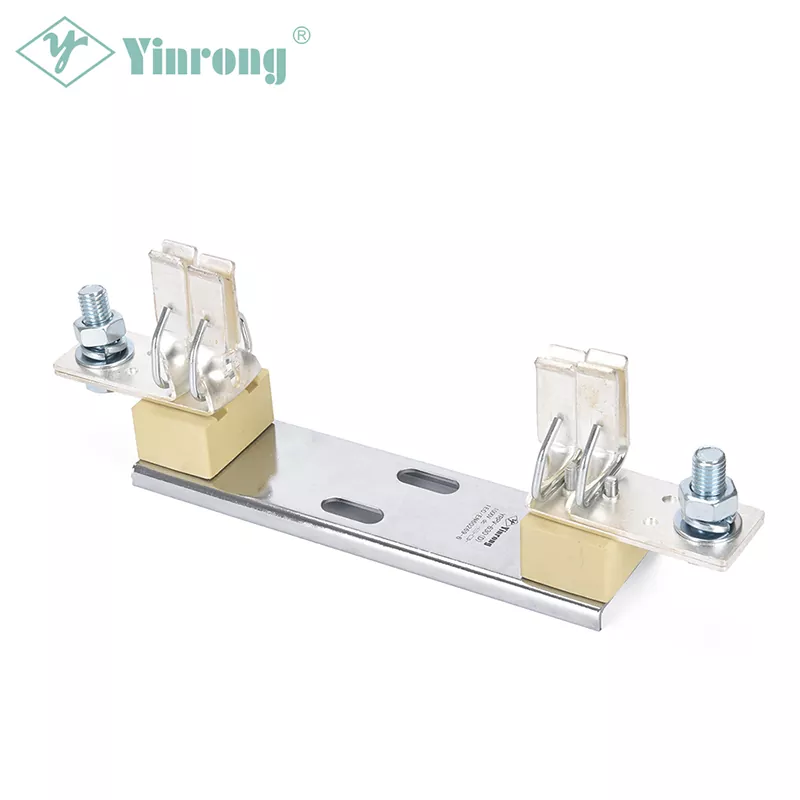

YRPV-630D Fuse Holder |
1000VDC/1500VDC |
630A |
/ |
Time-Current Curve
Hot Tags: NH3 L 1500VDC gPV Fuse, China, Manufacturers, Suppliers, Factory, In Stock, Available, Brands, Quality, Durable, Fast-delivery, CE, TUV, UL
