10×85 1000VDC gPV Fuse

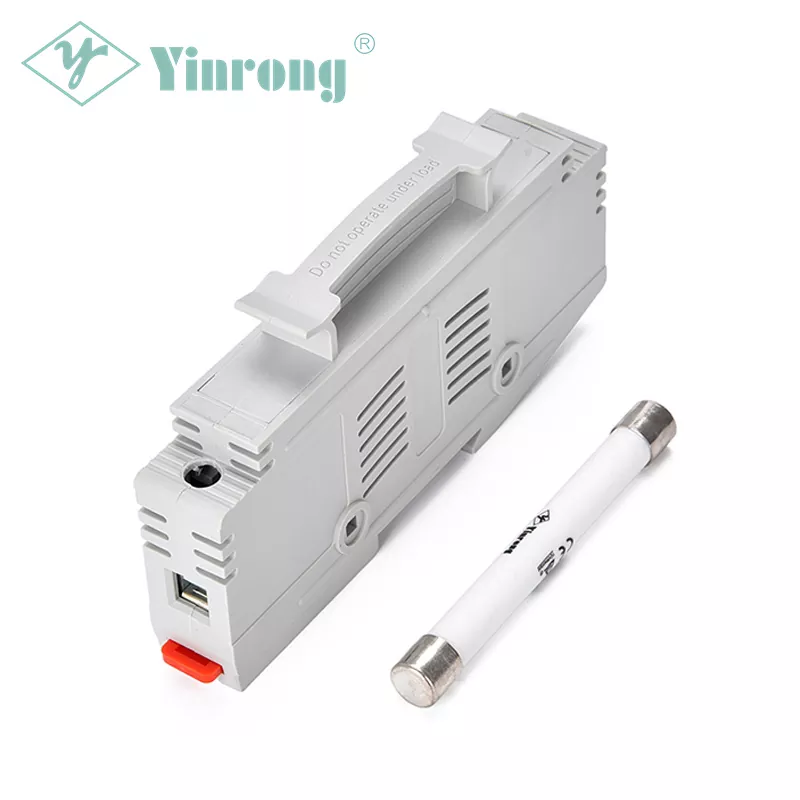

Yinrong Fuse is a preeminent manufacturer and supplier in China of the 10×85 1000VDC gPV Fuse, which is specifically designed to provide comprehensive protection for photovoltaic combiner boxes. These fuses are characterized by their round tube type construction and full-range protection capabilities, which are achieved through a low I2t value, strong current limiting ability, and high breaking capacity.In addition to these essential characteristics, the 10×85 1000VDC gPV Fuse link with fuse holder also boasts an impressive maximum current of 30A at the rated voltage of 1000VDC/1500VDC. This makes it an ideal choice for protecting photovoltaic module strings and array devices from both overload and short circuit current faults.Yinrong Fuse is committed to providing reliable and safe protection for both off-grid and grid-tied PV systems, safeguarding against unexpected ground faults and line faults. With its exceptional quality and performance, the 10×85 1000VDC gPV Fuse link with fuse holder from Yinrong Fuse is an outstanding choice for all your photovoltaic combiner box protection needs.
Send Inquiry
Product Description
Yinrong Fuse is a leading manufacturer in Zhejiang, China, specializing in 10×85 1000VDC gPV Fuse link with fuse holder for photovoltaic module protection. These fuses provide reliable protection against overload and short circuit current failures and are widely used in PV DC combiner boxes and inverters. With a broad range of amperage ratings from 2A to 30A and compliance with IEC60296-6 and UL4248-19 safety standards as well as RoHS approval, Yinrong Fuse is a trusted choice for high-quality fuses. You can rest assured to buy customized 10×85 1000VDC gPV Fuse from us.
Rated Voltage
1000VDC/1500VDC
Rated Current
2-30A
Breaking Capacity
40kA
Fuse Size
10×85mm
Operating Class
gPV
Pole
Only Support 1P Fuse Holder
Standard/Compliances
-IEC 60269-6
-UL 248-19
-EN 60947-3
Certifications
Compatible Fuse holder/Accessories：

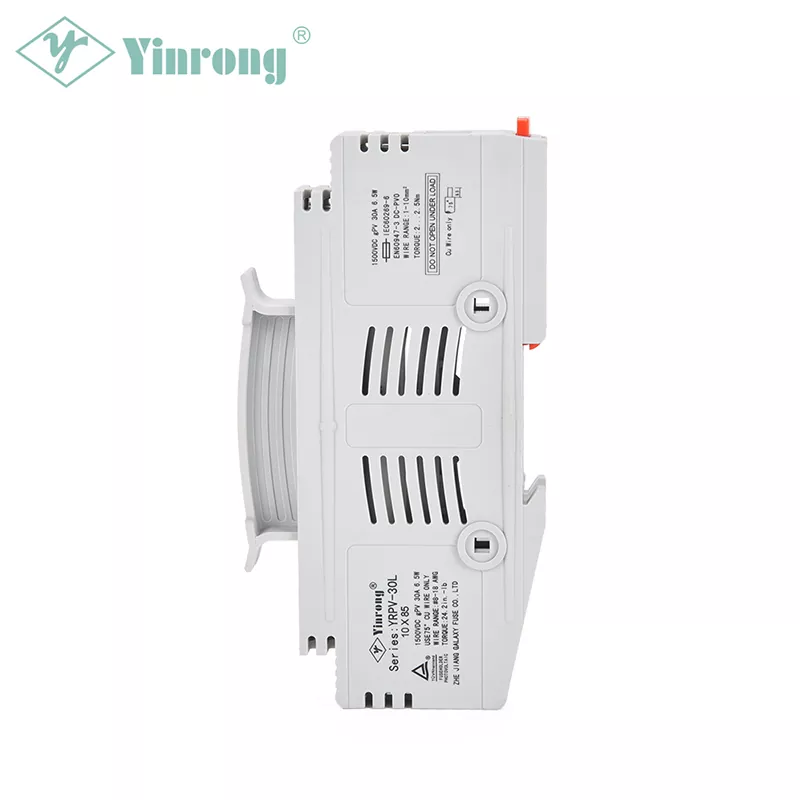

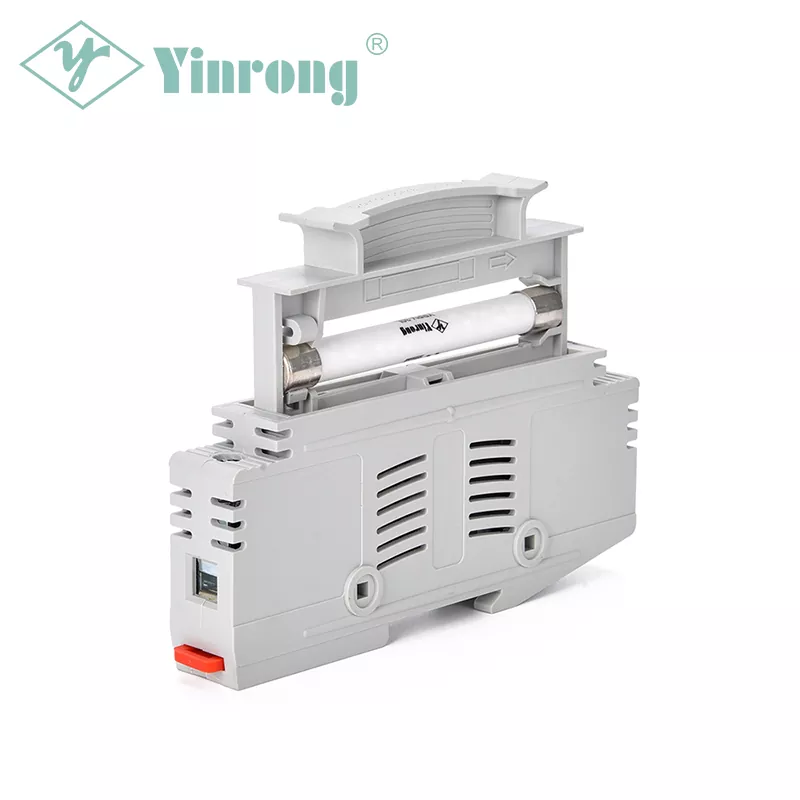

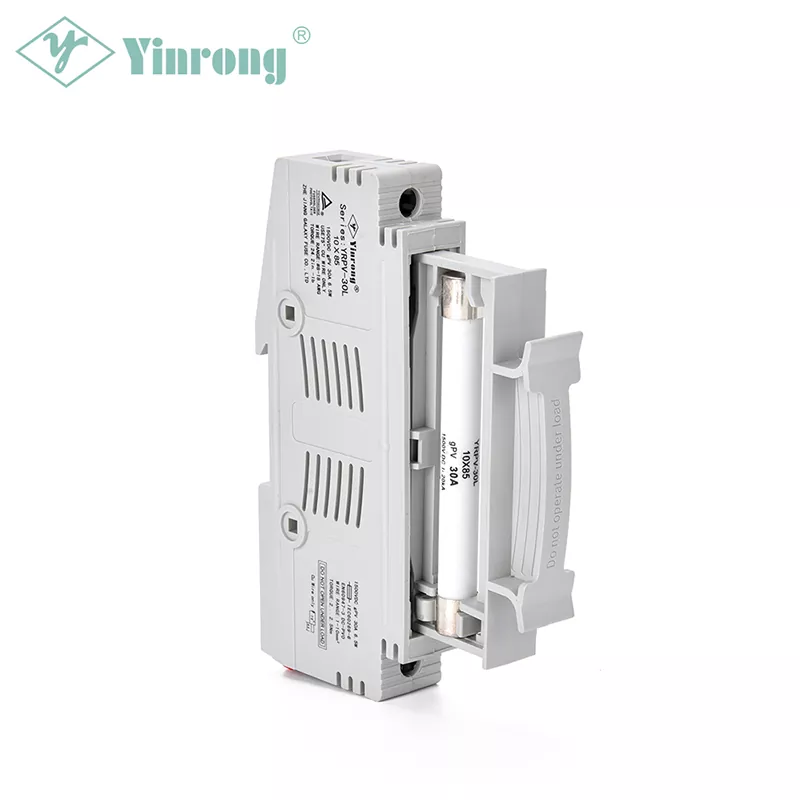

YRPV-30L Fuse holder
Applications of 10×85 1000VDC gPV Fuse
- DC Photovoltaic Combiner Box
-PV string/array level protection
-In-line PV module protection
-Battery charge controllers
Country of Origin
Zhejiang,China
Prameters
|
Model/Size |
Rated Voltage (V) |
Rated Current (A) |
Breaking Capacity (kA) |
|---|---|---|---|
|

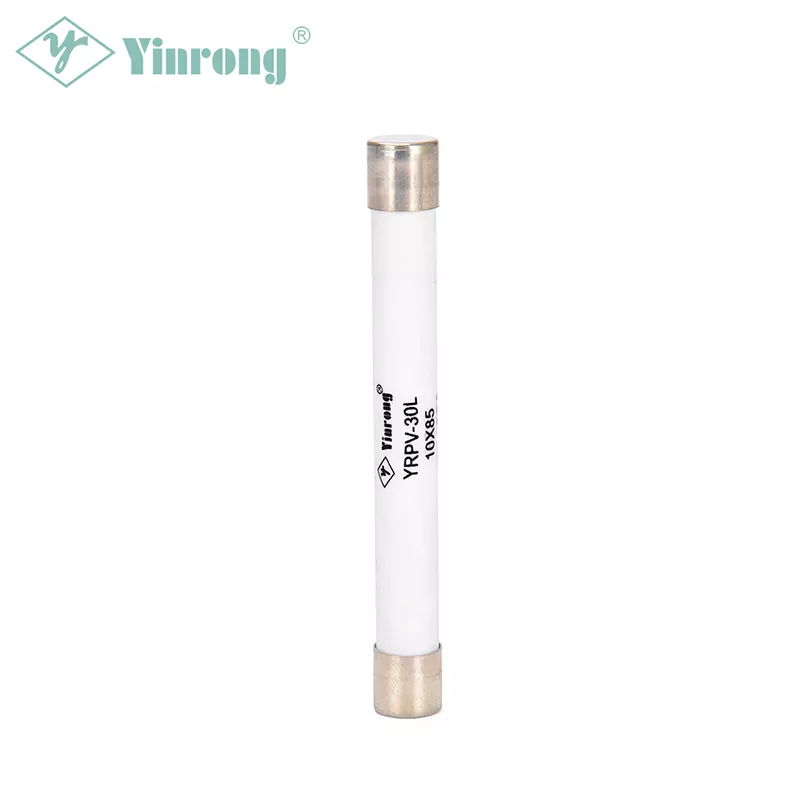

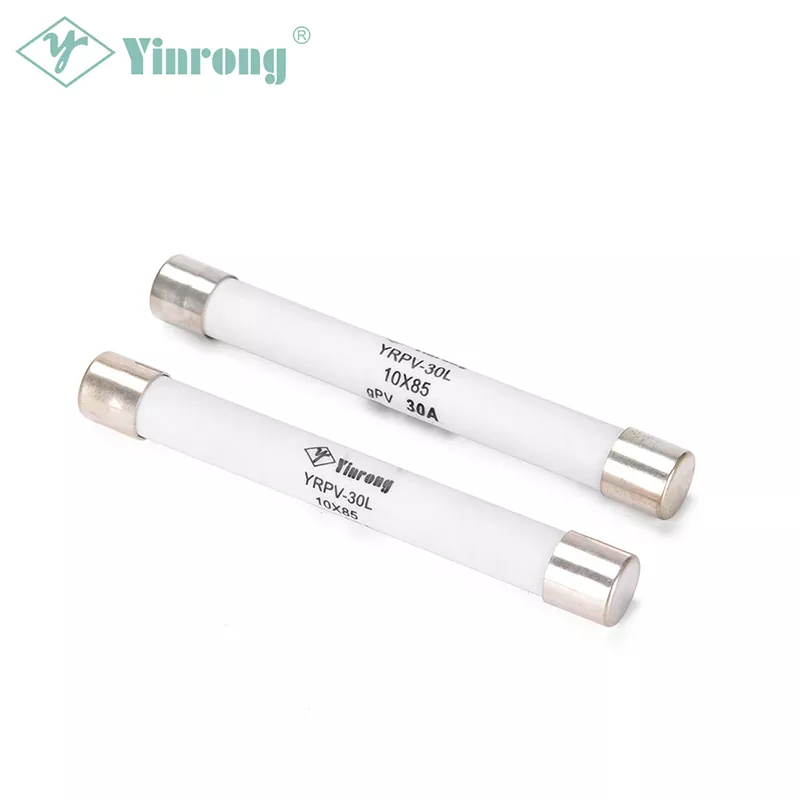

YRPV-30L 10*85 Fuse Link |
1000VDC/1500VDC |
2-30A |
1000VDC:40kA 1500VDC TUV&CE:40kA UL:20kA |
|
YRPV-30 10*38 Fuse Holder |
1000VDC/1500VDC |
30A |
/ |
Time-Current Characteristic
|
Standard：UL248-19 |
Standard：IEC60269-6 |
||
|---|---|---|---|
|
135% In |
200% In |
113% In |
145% In |
|
＜ 1h fusing |
＜ 240s fusing |
＞ 1h non fusing |
＜ 1h fusing |
Note : Subsequent standard updates will not afect the performance and noral use of the product.
Time-Current Curve
