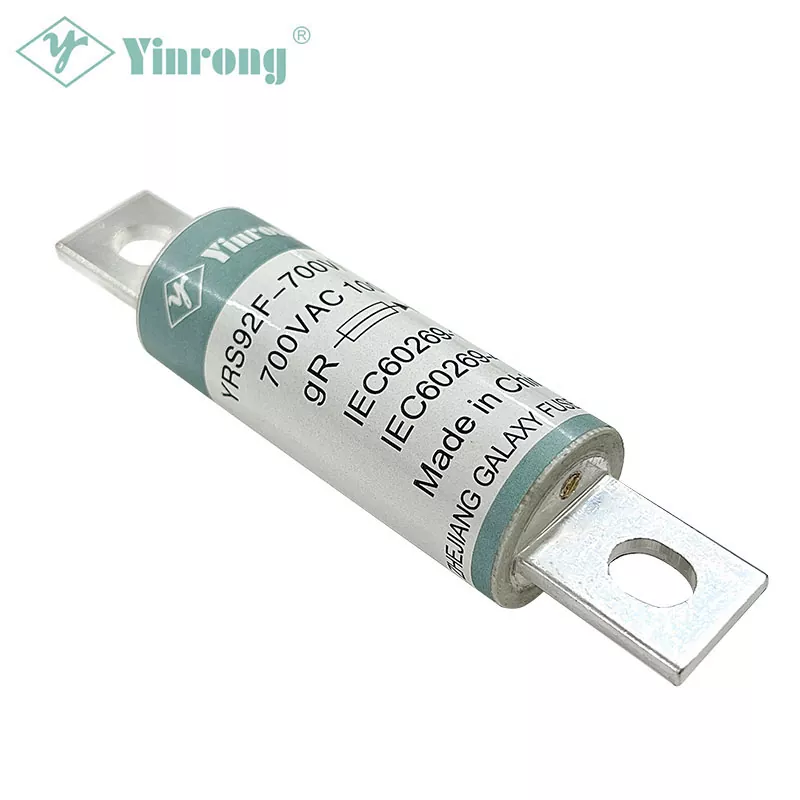

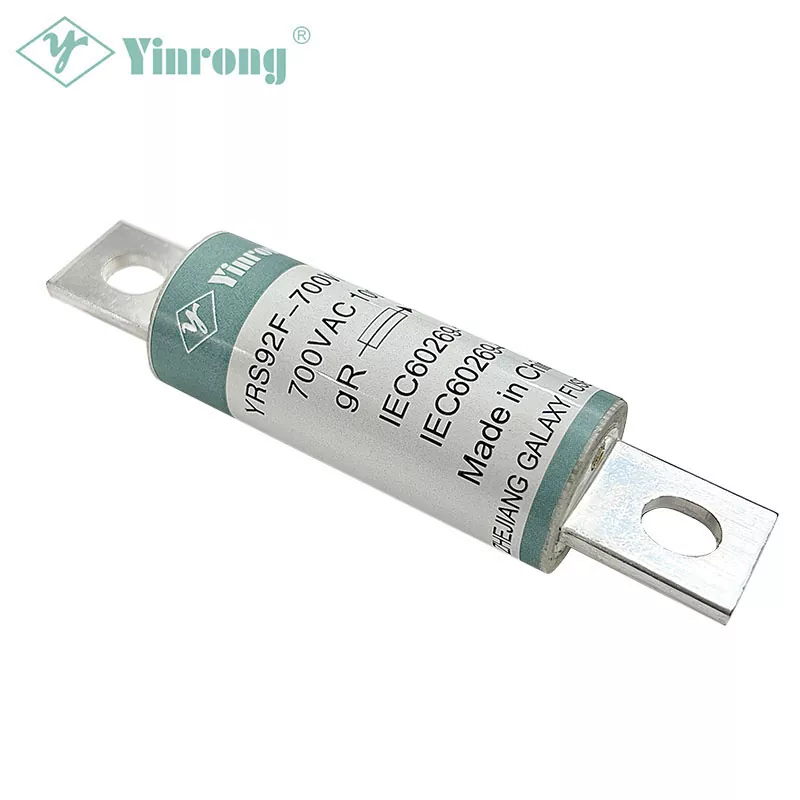

700VAC 100A Stud-Mount High speed Fuse

Galaxy Fuse (Yinrong), a Chinese high speed fuse manufacturer, supplies a range of North American style round fuses,which includes the 700VAC 100A Stud-Mount High Speed Fuse. Besides,the 700VAC 100A Stud-Mount High Speed Fuse is designed to protect semiconductor devices from both overloading and short-circuiting. With a wide amperage rating of 70-100A under the rated voltage of 700V AC,700VAC 100A Stud-Mount High Speed Fuse is ideal for short-circuit and backup protection of various equipment and devices, including frequency converters, rectifiers, inverters, power supplies, batteries, motors, capacitors, wires, and other semiconductor equipment.Additionally, the 700VAC 100A Stud-Mount High Speed Fuse conforms to both GB13539.4 and IEC60269-4 standards.

Standard/Compliance

-IEC 60269-4

-GB/T13539.4

Class of Operation

gR

Features&Benefits

- 700VAC electrical system available

- 70-100A ampere ratings available

- Traditional North American Bolted Style dimensions

- High breaking capacity

- Direct bus-bar mount and stud mounting

- Superior cycling capability

- Conforms to IEC standards for global acceptance

- Low power loss and temperature rise for energy efficiency

Applications of 700VAC 100A Stud-Mount High speed Fuse

- Power conversion devices (inverter, rectifiers)

- Power Supplies

- UPS

- Variable Speed Drives

- Control Circuits

- Soft Starters

- Other semiconductors

Country of Origin

People’s Republic of China

Conventional Fusing and Non-Fusing

Sizes

Time-Current Characteristic

Cut-off Current Characteristic
