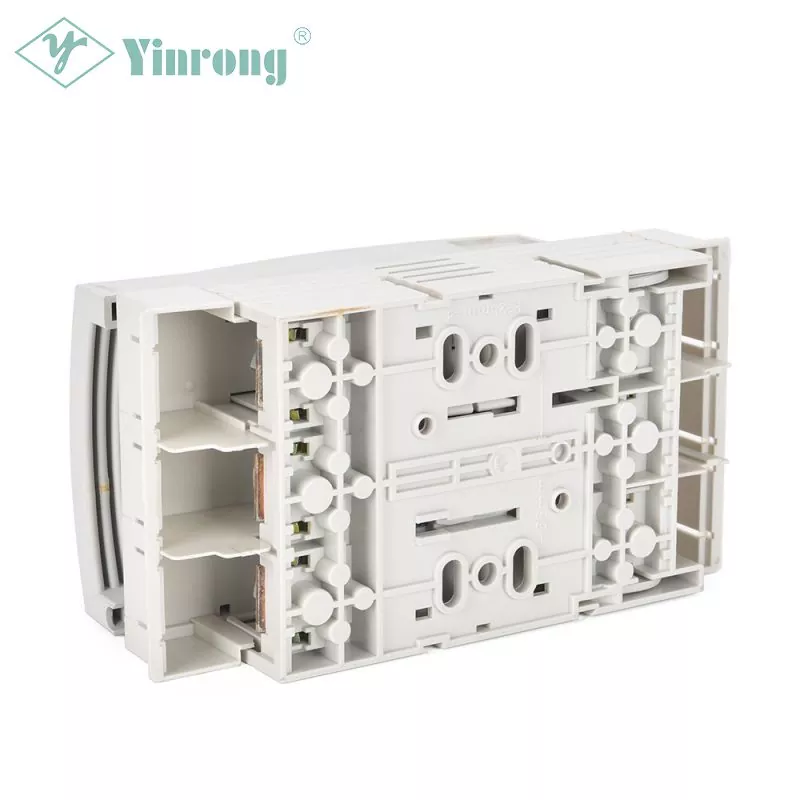

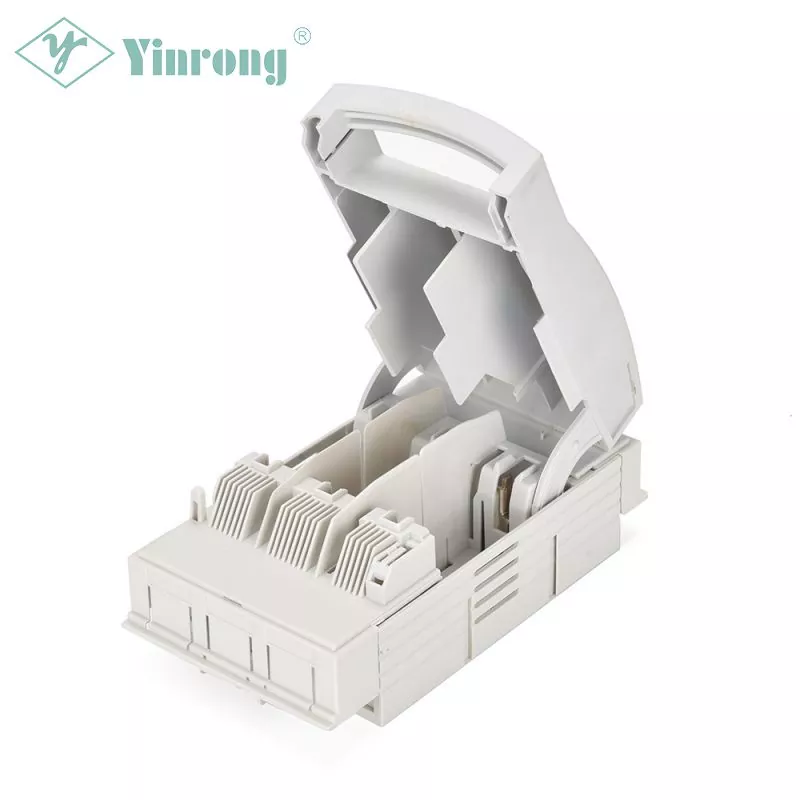

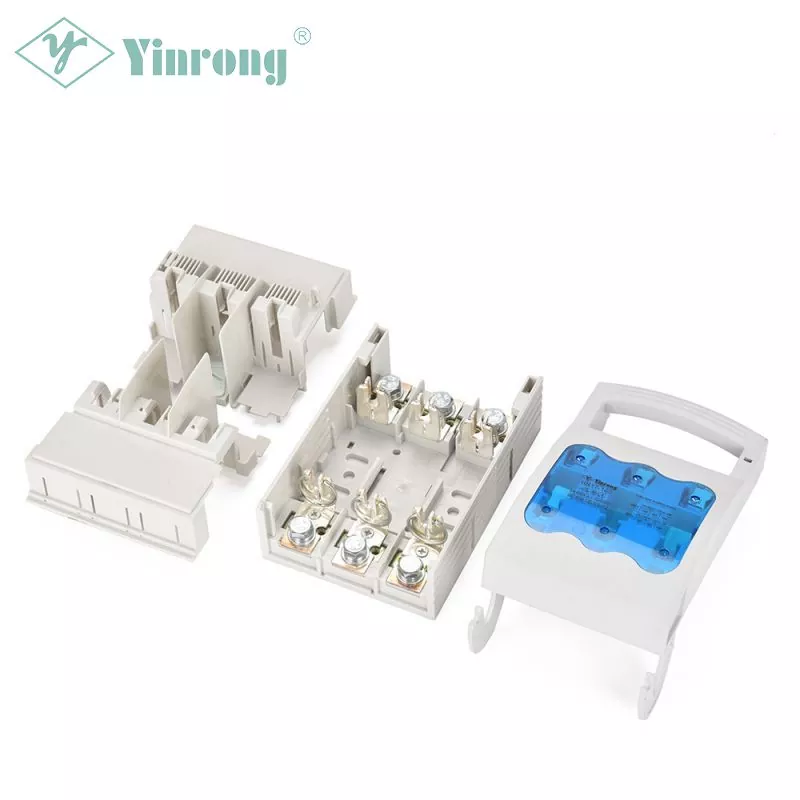

size 00 160A Fuse Type Disconnector

Zhejiang Galaxy Fuse Co., Ltd, also known as Yinrong, is a leading Chinese expert in the production of size 00 160A Fuse Type Disconnector. The size 00 160A Fuse Type Disconnector is specially designed to provide both short circuit and overload protection for cables and power equipment within a distribution system. In the case of a short circuit, the NH fuse link inside the size 00 160A Fuse Type Disconnector is able to break the current. This horizontal size 00 160A Fuse Type Disconnector is characterized by its excellent isolating function and durability, making it capable of withstanding high short-circuit conditions.

Rated Voltage

690V

Rated Current

160A

Pole

3P available

Standard/Compliance

-IEC 60947-3

-GB/T14048.3

Certifications

Compatible Fuse Link

NT-00;NH00;NH00C;NT-00C

Features&Benefits

- High isolation function

- High durability

- Withstanding high short-circuits

- 160A ampere ratings

- 3 pole version

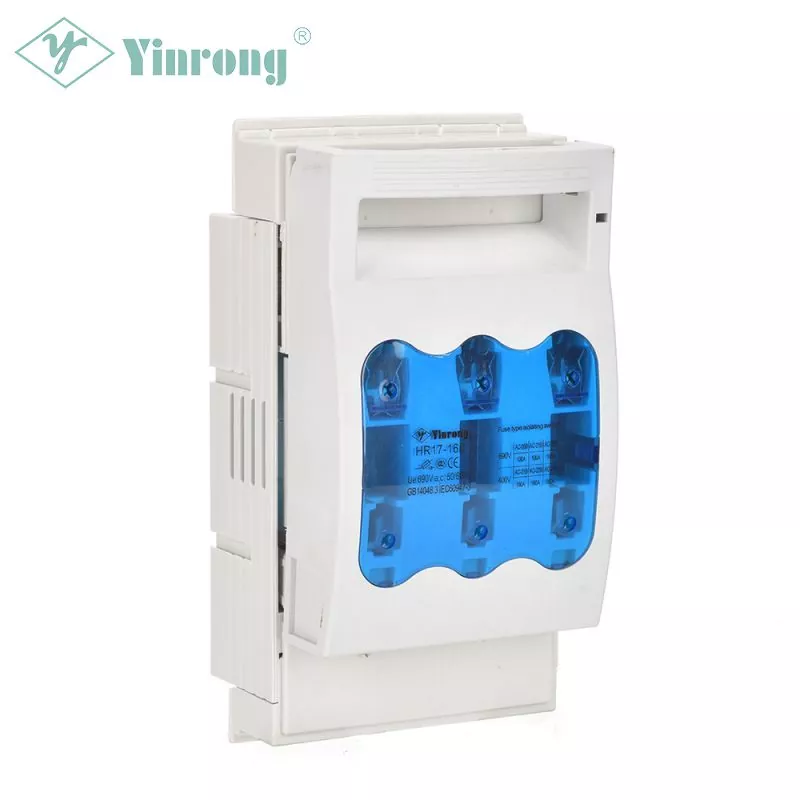

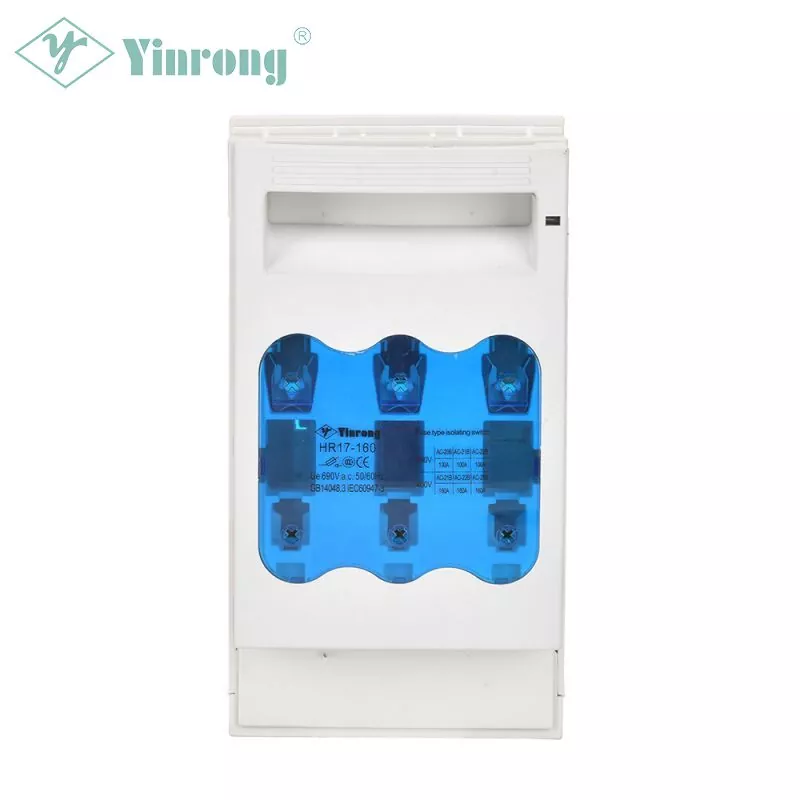

- Featuring a transparent cover to check state of fuse link inside

Applications of size 00 160A Fuse Type Disconnector

- Machine switching(on/off),(HVAC,Crane,Pump,Conveyor)

- Power Distribution

- Low voltage switchboards

- Motor control centers(isolating&protecting motor starters)

- Security applications

- Power Plants

- UPS and telecommunication application

Country of Origin

People’s Republic of China

Parameters

Sizes
