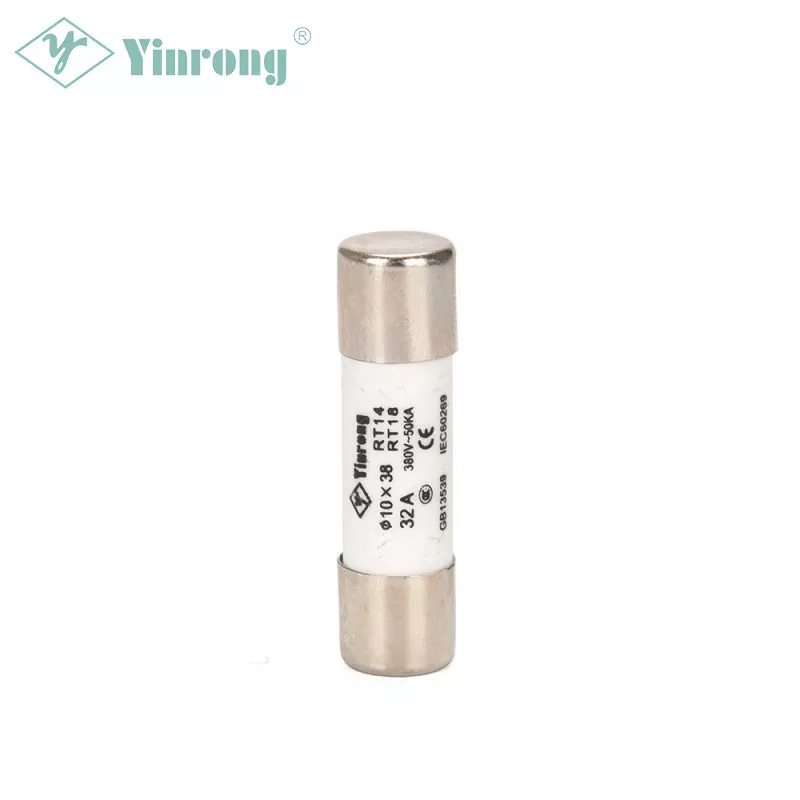

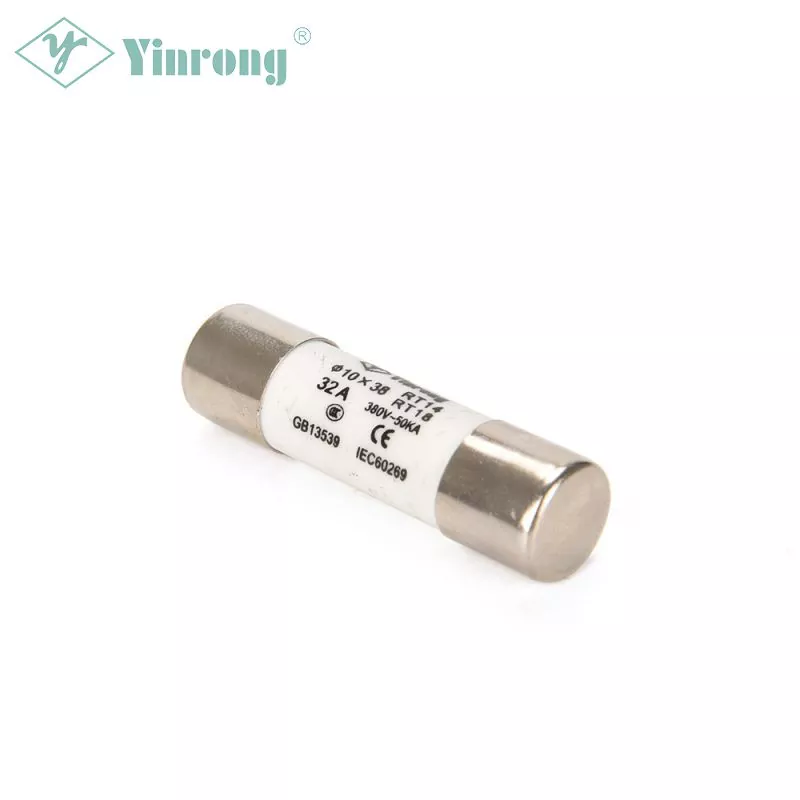

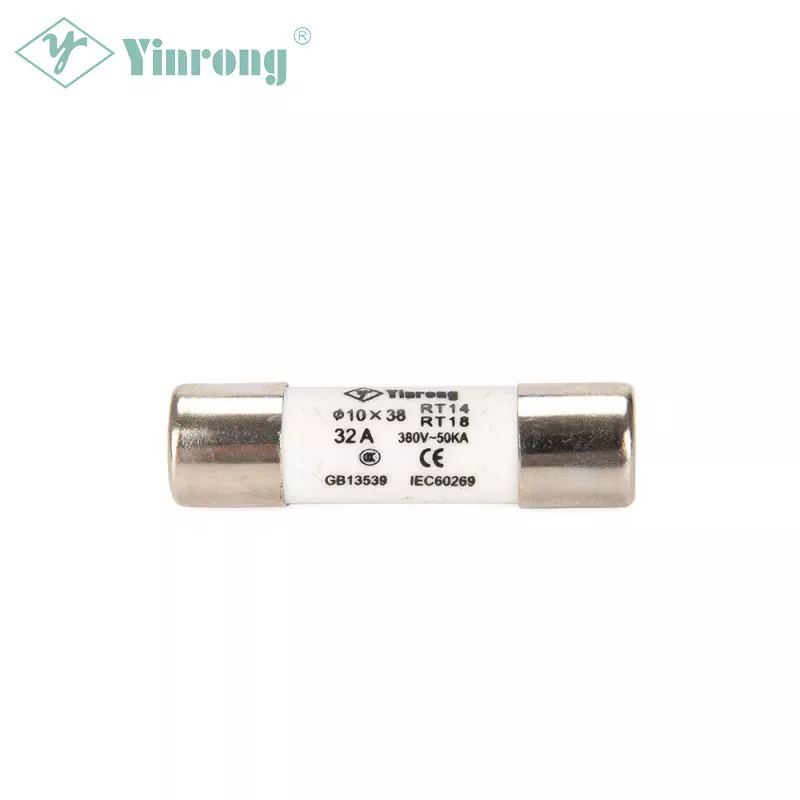

10X38 Cylindrical gG Fuse
Yinrong is a Chinese enterprise committing themselves to the manufacture and production of RT18-32 10X38 Cylindrical gG Fuse. The RT18-32 10X38 Cylindrical gG Fuse is purpose-built to provide fast-acting protection against overload currents commonly associated with industrial applications. RT18-32 10X38 Cylindrical gG Fuse utilizes a 10x38mm fuse link size, making it suitable for safeguarding general industrial circuits operating at up to 690V, including motors, transformers, low voltage distribution, and control circuits. The recommended fuse holder for the RT18-32 10X38 Cylindrical gG Fuse is the RT18-32 10x38mm fuse holder, which features a flame-retardant shell that meets V0 standard and a dead-front design for finger-safe. Additionally, RT18-32 10X38 Cylindrical gG Fuse offers the convenience of bus-bar mounting compatibility, and is available in 1P/2P/3P/4P configurations to suit various installation needs.
Send Inquiry
Product Description
Yinrong is a leading Chinese manufacturer specializing in the production of RT18-32 10X38 Cylindrical gG Fuse. The RT18-32 10X38 Cylindrical gG Fuses are specifically engineered to provide rapid protection against overload currents which are commonly encountered in industrial applications. Featuring a compact 10x38mm fuse link size, the RT18-32 10X38 Cylindrical gG Fuses are ideally suited for safeguarding general industrial circuits operating at voltages up to 690V, including motors, transformers, low voltage distribution, and control circuits. The recommended fuse holder for the RT18-32 10x38mm cylindrical gG fuses are the RT18-32 10x38mm fuse holder, which boasts a flame-retardant shell which meets V0 standards and features a dead-front design for enhanced finger-safe. Moreover, the RT18-32 10X38 Cylindrical gG Fuse offer the convenience of bus-bar mounting compatibility, and are available in various configurations (1P/2P/3P/4P) to cater to diverse installation requirements.
Rated Voltage
500V/690V
Rated Current
2-32A
Breaking Capacity
500V-100KA/690V-80KA
Operating Class
gG/gL;aR;aM
Pole
Support 1P/2P/3P/4P Fuse Holder
Standard/Compliance
-IEC 60269-2
-GB/T13539.2
Certifications

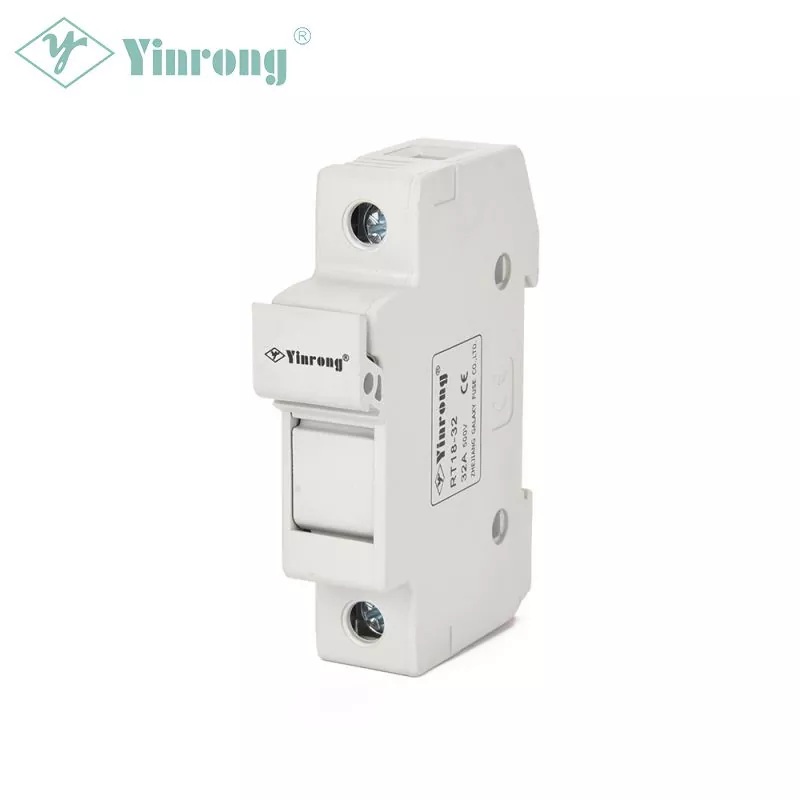

Compatible Fuse Holder

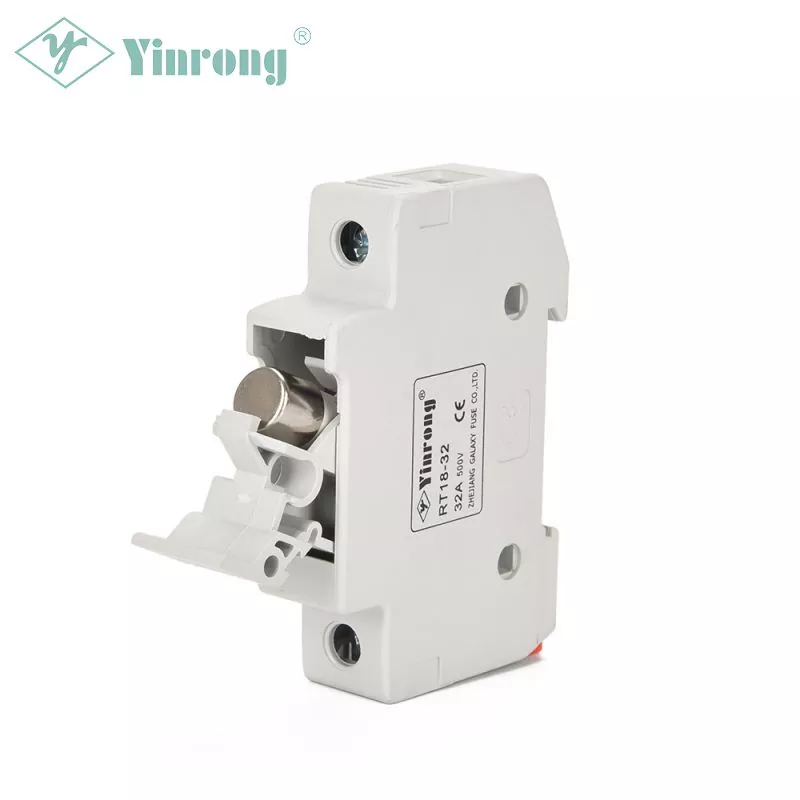

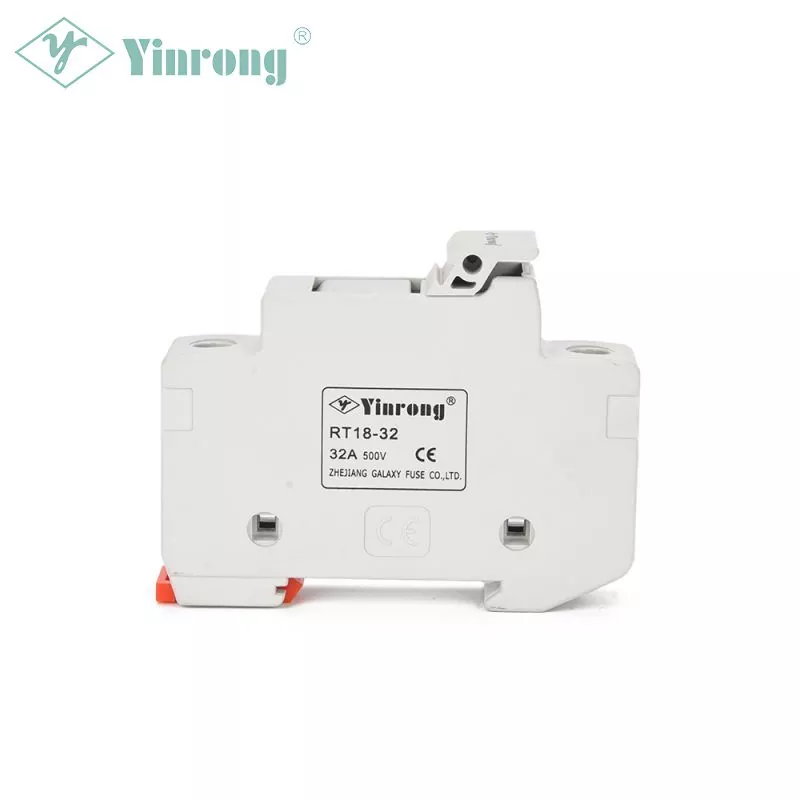

RT18-32 (without indicator)

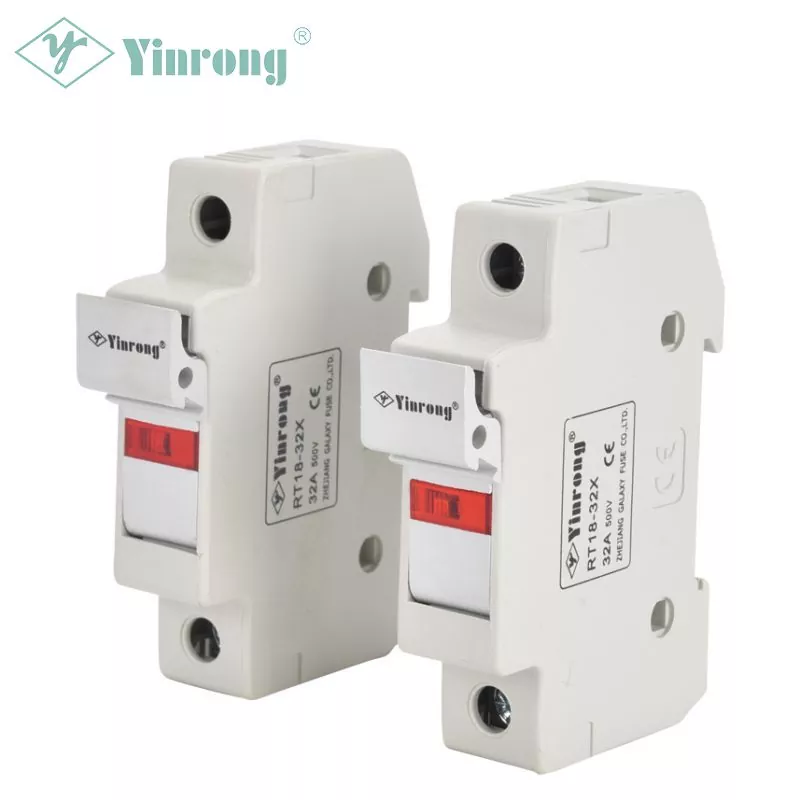

RT18-32x (with indicator)
Features and Benefits
-Covering 250VAC,380VAC,500VAC,and 690VAC electrical distribution circuits and various industrial applications.
-2A to 32A ampere ratings available
-Full range protection,semiconductor protection and motor protection
-Standardized Cylindrical Construction
-Low power dissipation performance for lower temperature rise
-Din Rail mounting
Applications of 10X38 Cylindrical gG Fuse
- General industrial application
- Motor drive
- LV networks
- Electric cabinet
- Solid state relays
- Semiconductor devices
-Power rectifier
- Uninterruptible Power System
Country of Origin
People’s Republic of China
Parameters
|
Model/Size |
Rated Voltage(V) |
Rated Current(A) |
Overall Dimension |
||
|
φC |
A |
Fig. |
|||
|
10.3x38T |
500V/690V |
2,4,,6,10,12,16,20,25,32 |
10.3 |
38 |
Fig.1 |
|
5x20 |
250V |
0.5,1,2,3,4,6,10,12,13 |
5 |
20 |
Fig.2 |
|
5x25 |
250V |
0.5,1,2,3,4,6,10,12,16 |
5 |
25 |
|
|
6x20 |
250V |
0.5,1,2,3,4,6,10,12,16 |
6 |
20 |
|
|
6.3x23 |
250V |
0.5,1,2,3,4,6,10,12,16,20 |
6.3 |
23 |
|
|
6.3x25 |
250V |
0.5,1,2,3,4,6,10,12,16,20 |
6.3 |
25 |
|
|
6.3x31.5 |
250V/500V |
0.5,1,2,3,4,6,10,12,16,20 |
6.3 |
31.5 |
|
|
8.5x23 |
250V |
0.5,1,2,3,4,6,10,12,16,20,25 |
8.5 |
23 |
|
|
8.5x31.5 |
250V/500V |
0.5,1,2,3,4,6,10,12,16,20,25 |
8.5 |
31.5 |
|
|
8.5x36 |
250V/500V |
1,2,3,4,6,10,12,16,20,25,32 |
8.5 |
36 |
|
|
10x30 |
250V/500V |
2,4,6,10,12,16,20,25,32 |
10 |
30 |
|
|
10.3x28.5 |
250V/500V |
2,4,6,10,12,16,20,25,32 |
10.3 |
28.5 |
|
|
10.3x31.5 |
250V/500V |
2,4,6,10,12,16,20,25,32 |
10.3 |
31.5 |
|
|
10.3x34 |
250V/500V |
2,4,6,10,12,16,20,25,32 |
10.3 |
34 |
|
|
10.3x38 |
500V/690V |
2,4,6,10,12,16,20,25,32 |
10.3 |
38 |
|
|
10.3x65 |
690V/1000V |
2,4,6,10,12,16,20,25,32 |
10.3 |
65 |
|
|
14.3x38 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
14.3 |
38 |
|
|
14.3x45 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
14.3 |
45 |
|
|
14.3x51 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
14.3 |
51 |
|
|
14.3x65 |
690V/1000V |
2,4,6,10,12,16,20,25,32,40,50 |
14.3 |
65 |
|
|
15x50 |
500V/690V |
16,20,25,32,40,50 |
15 |
50 |
|
|
16.7x35 |
250V/500V |
16,20,25,32,40,50,63 |
16.7 |
35 |
|
|
18x37 |
250V/500V |
2,4,6,10,12,16,20,25,32,40,50,63 |
18 |
37 |
|
|
18x50 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
18 |
50 |
|
|
20.5x40 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
40 |
|
|
20.5x76 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
76 |
|
|
20.5x114 |
690V/1000V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
114 |
|
|
20.5x127 |
690V/1000V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
127 |
|
|
22.2x58 |
500V/690V |
16,20,25,32,40,50,63,80,100,125 |
22.2 |
58 |
|
|
27x60 |
500V/690V |
32,40,50,63,80 |
27 |
60 |
|
|
27x139 |
690V/1000V |
32,40,50,63 |
27 |
139 |
|
|
27x147 |
690V/1000V |
32,40,50,63 |
27 |
147 |
|
|
30x57 |
500V/690V |
16,20,25,32,40,50,63,80,100,125 |
30.1 |
57 |
|
|
14.3x51H |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
14.3 |
51 |
Fig.3 |
|
20.5x76H |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
76 |
|
|
20.5x114H |
690V/1000V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
114 |
|
|
20.5x127H |
690V/1000V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
127 |
|
|
22.2x58H |
500V/690V |
16,20,25,32,40,50,63,80,100,125 |
22.2 |
58 |
|
|
27x139H |
690V/1000V |
32,40,50,63 |
27 |
139 |
|
|
27x147H |
690V/1000V |
32,40,50,63 |
27 |
147 |
|
|
Model |
Rated Current |
Rated Voltage |
Recommended Fuse Link Size |
N.W. |
|
RT18-32 |
32A |
500VAC |
10x38mm Fuse Link |
58.5g |
|
RT18-32X |
61.5g |
Sizes
Time-Current Characteristic
Cut-off Current Characteristic
