14X51 Cylindrical gG Fuse

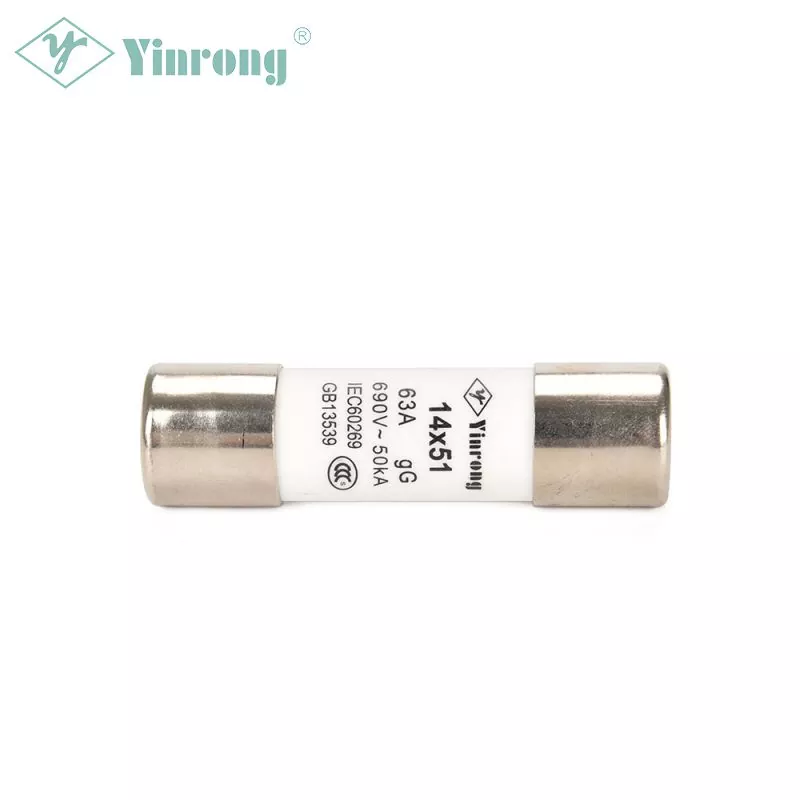

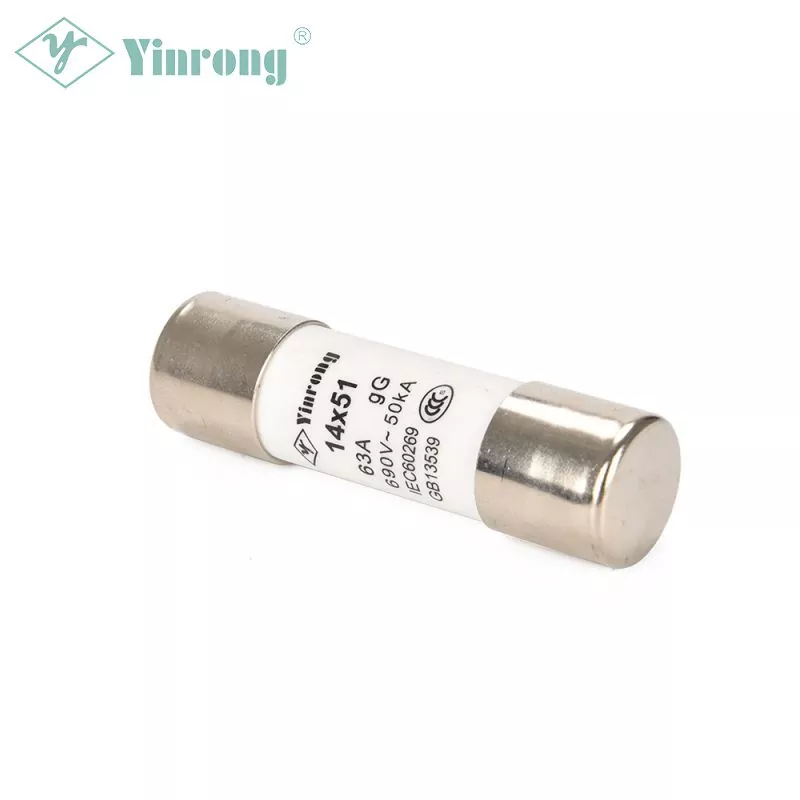

Yinrong is a Chinese company that specializes in manufacturing and producing the RT18-63 14X51 Cylindrical gG Fuse, which is specifically designed for fast-acting protection against short-circuit currents and overload currents commonly found in industrial applications.The RT18-63 14x51mm cylindrical gG fuse utilizes a 14x51mm fuse link size, making it ideal to safeguard general industrial circuits operating at up to 690V like motors, transformers, low voltage distribution, and control circuits. The fuse holder which is compatible with RT18-63 14x51mm cylindrical gG fuse is RT18-63 14x51mm fuse holder, which features a flame-retardant shell that meets V0 standard and a dead-front design for finger-safe.Furthermore, the RT18-63 14X51 Cylindrical gG Fuse is wired on bus-bar and is available in 1P/2P/3P/4P configurations to accommodate different installation requirements.
Send Inquiry
Product Description

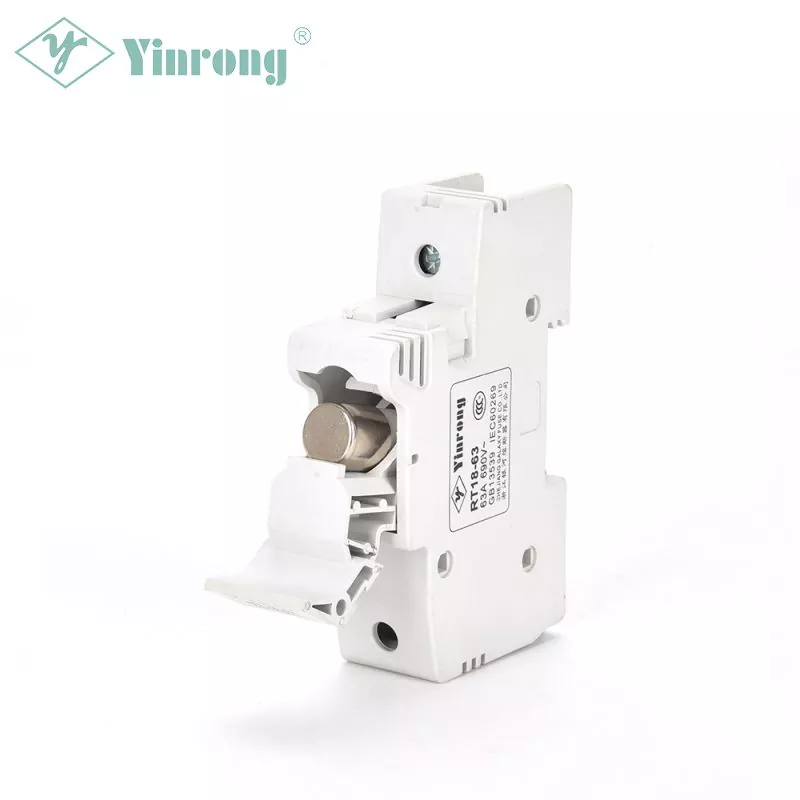

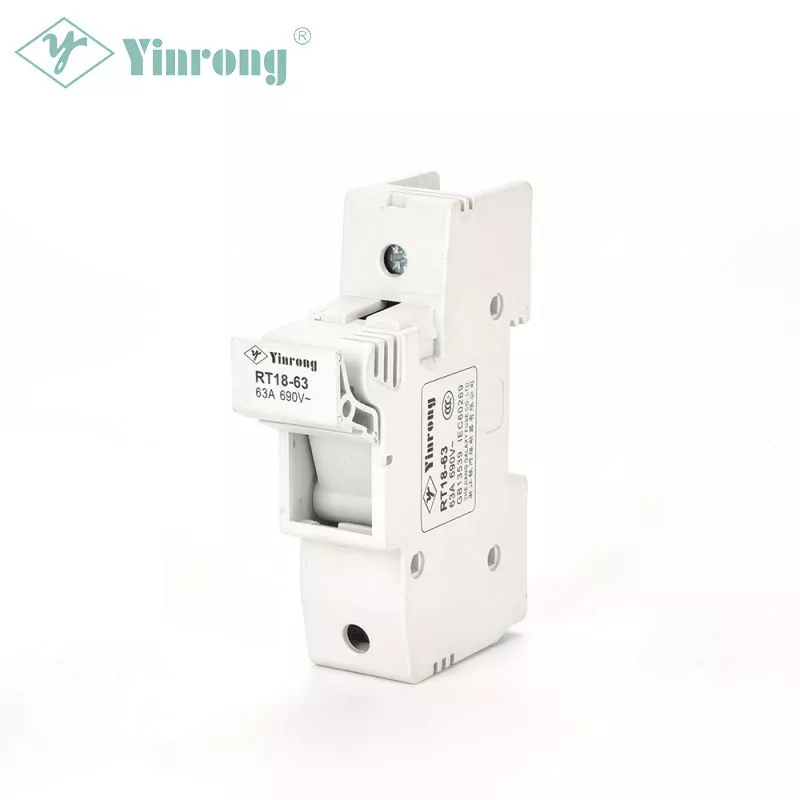

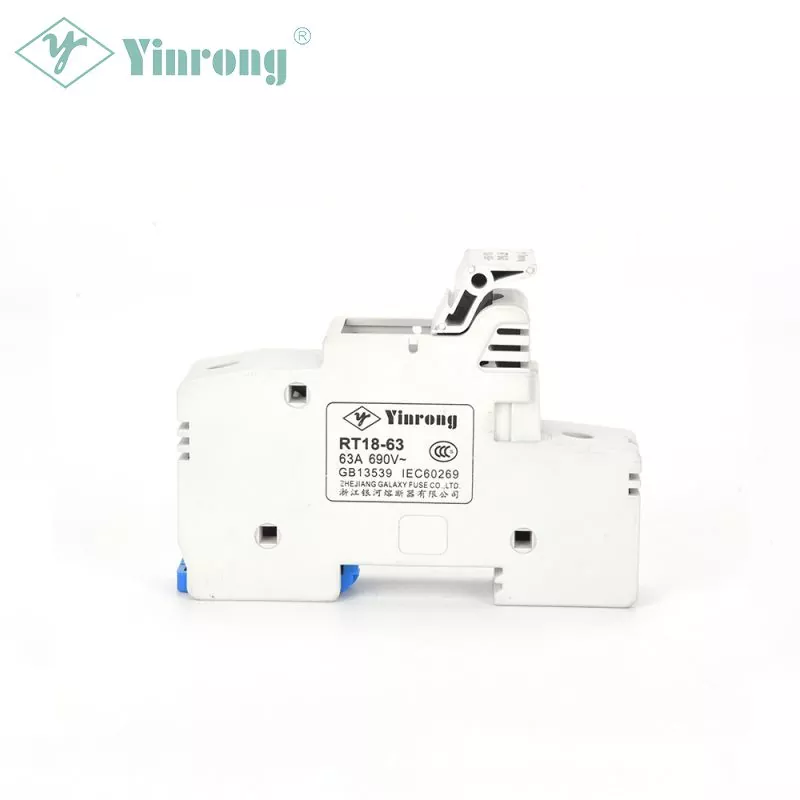

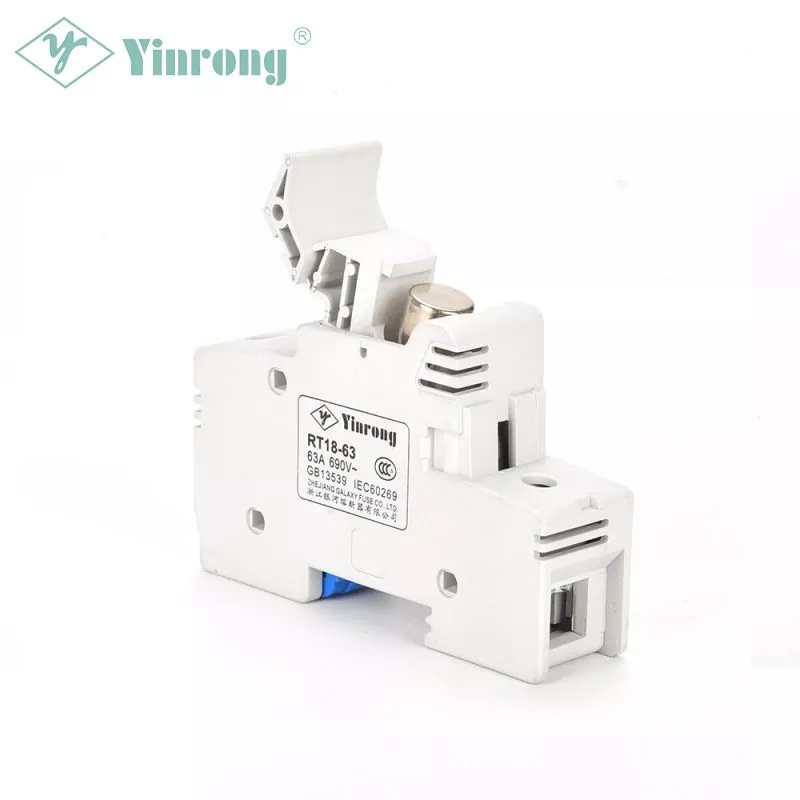

Yinrong is a Chinese company that specializes in manufacturing and producing the RT18-63 14X51 Cylindrical gG Fuse, which is purpose-built to provide fast-acting protection against short-circuit currents and overload currents commonly encountered in industrial applications. The RT18-63 14X51 Cylindrical gG Fuse is designed with a 14x51mm fuse link size, making it an ideal choice for safeguarding general industrial circuits operating at up to 690V, including motors, transformers, low voltage distribution, and control circuits. The recommended fuse holder for this fuse is the RT18-63 14x51mm fuse holder, which features a flame-retardant shell that meets V0 standards and a finger-safe dead-front design. Additionally, the RT18-63 14X51 Cylindrical gG Fuse can be wired on a bus-bar, providing convenient installation options, and is available in 1P/2P/3P/4P configurations to suit different installation requirements.
Rated Voltage
500V/690V
Rated Current
2-63A
Breaking Capacity
500V-100KA/690V-80KA
Operating Class
gG/gL;aR;aM
Pole
Support 1P/2P/3P/4P Fuse Holder
Standard/Compliance
-IEC 60269-2
-GB/T13539.2
Certifications
Compatible Fuse Holder
RT18-63
Features and Benefits
-Covering 250VAC,380VAC,500VAC,and 690VAC electrical distribution circuits and various industrial applications.
-2A to 63A ampere ratings available
-Full range protection,semiconductor protection and motor protection
-Standardized Cylindrical Construction
-Low power dissipation performance for lower temperature rise
-Din Rail mounting
Applications of 14X51 Cylindrical gG Fuse
- General industrial application
- Motor drive
- LV networks
- Electric cabinet
- Solid state relays
- Semiconductor devices
-Power rectifier
- Uninterruptible Power System
Country of Origin
People’s Republic of China
Parameters
|
Model/Size |
Rated Voltage(V) |
Rated Current(A) |
Overall Dimension |
||
|---|---|---|---|---|---|
|
φC |
A |
Fig. |
|||
|
10.3x38T |
500V/690V |
2,4,,6,10,12,16,20,25,32 |
10.3 |
38 |
Fig.1 |
|
5x20 |
250V |
0.5,1,2,3,4,6,10,12,13 |
5 |
20 |
Fig.2 |
|
5x25 |
250V |
0.5,1,2,3,4,6,10,12,16 |
5 |
25 |
|
|
6x20 |
250V |
0.5,1,2,3,4,6,10,12,16 |
6 |
20 |
|
|
6.3x23 |
250V |
0.5,1,2,3,4,6,10,12,16,20 |
6.3 |
23 |
|
|
6.3x25 |
250V |
0.5,1,2,3,4,6,10,12,16,20 |
6.3 |
25 |
|
|
6.3x31.5 |
250V/500V |
0.5,1,2,3,4,6,10,12,16,20 |
6.3 |
31.5 |
|
|
8.5x23 |
250V |
0.5,1,2,3,4,6,10,12,16,20,25 |
8.5 |
23 |
|
|
8.5x31.5 |
250V/500V |
0.5,1,2,3,4,6,10,12,16,20,25 |
8.5 |
31.5 |
|
|
8.5x36 |
250V/500V |
1,2,3,4,6,10,12,16,20,25,32 |
8.5 |
36 |
|
|
10x30 |
250V/500V |
2,4,6,10,12,16,20,25,32 |
10 |
30 |
|
|
10.3x28.5 |
250V/500V |
2,4,6,10,12,16,20,25,32 |
10.3 |
28.5 |
|
|
10.3x31.5 |
250V/500V |
2,4,6,10,12,16,20,25,32 |
10.3 |
31.5 |
|
|
10.3x34 |
250V/500V |
2,4,6,10,12,16,20,25,32 |
10.3 |
34 |
|
|
10.3x38 |
500V/690V |
2,4,6,10,12,16,20,25,32 |
10.3 |
38 |
|
|
10.3x65 |
690V/1000V |
2,4,6,10,12,16,20,25,32 |
10.3 |
65 |
|
|
14.3x38 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
14.3 |
38 |
|
|
14.3x45 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
14.3 |
45 |
|
|
14.3x51 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
14.3 |
51 |
|
|
14.3x65 |
690V/1000V |
2,4,6,10,12,16,20,25,32,40,50 |
14.3 |
65 |
|
|
15x50 |
500V/690V |
16,20,25,32,40,50 |
15 |
50 |
|
|
16.7x35 |
250V/500V |
16,20,25,32,40,50,63 |
16.7 |
35 |
|
|
18x37 |
250V/500V |
2,4,6,10,12,16,20,25,32,40,50,63 |
18 |
37 |
|
|
18x50 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
18 |
50 |
|
|
20.5x40 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
40 |
|
|
20.5x76 |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
76 |
|
|
20.5x114 |
690V/1000V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
114 |
|
|
20.5x127 |
690V/1000V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
127 |
|
|
22.2x58 |
500V/690V |
16,20,25,32,40,50,63,80,100,125 |
22.2 |
58 |
|
|
27x60 |
500V/690V |
32,40,50,63,80 |
27 |
60 |
|
|
27x139 |
690V/1000V |
32,40,50,63 |
27 |
139 |
|
|
27x147 |
690V/1000V |
32,40,50,63 |
27 |
147 |
|
|
30x57 |
500V/690V |
16,20,25,32,40,50,63,80,100,125 |
30.1 |
57 |
|
|
14.3x51H |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
14.3 |
51 |
Fig.3 |
|
20.5x76H |
500V/690V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
76 |
|
|
20.5x114H |
690V/1000V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
114 |
|
|
20.5x127H |
690V/1000V |
2,4,6,10,12,16,20,25,32,40,50,63 |
20.5 |
127 |
|
|
22.2x58H |
500V/690V |
16,20,25,32,40,50,63,80,100,125 |
22.2 |
58 |
|
|
27x139H |
690V/1000V |
32,40,50,63 |
27 |
139 |
|
|
27x147H |
690V/1000V |
32,40,50,63 |
27 |
147 |
|
|
Model |
Rated Current |
Rated Voltage |
Recommended Fuse Link Size |
N.W. |
|---|---|---|---|---|
|
RT18-63 |
63A |
500VAC |
14x51mm Fuse Link |
110.5g |
Sizes
Time-Current Characteristic
Cut-off Current Characteristic
