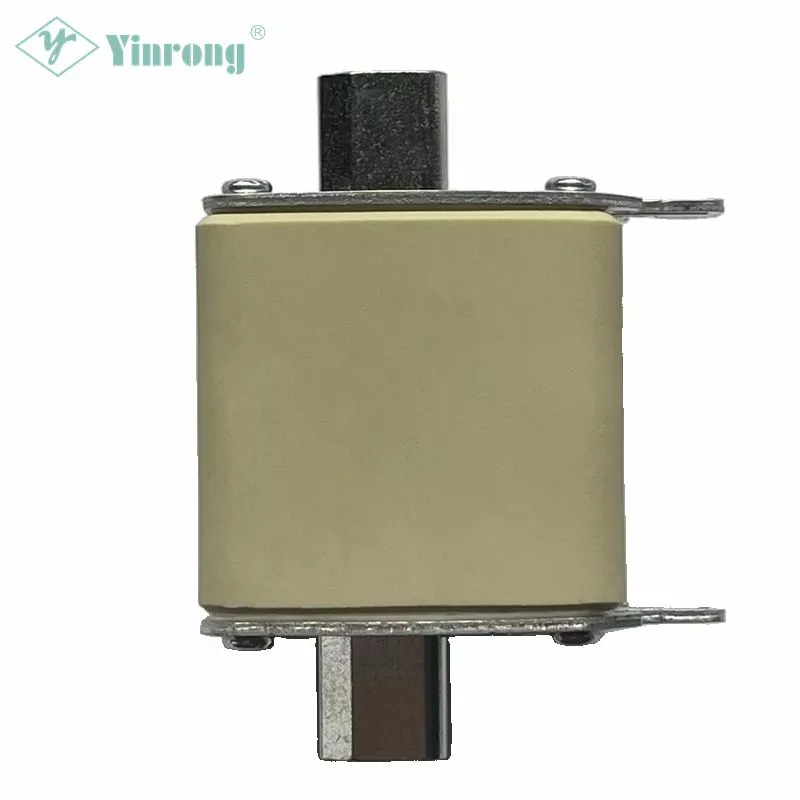

160A NH00 gG Knife-Blade HRC Fuse

Yinrong is a leading manufacturer and supplier of 160A NH00 gG Knife-Blade HRC Fuse in China. The 160A NH00 gG Knife-Blade HRC Fuse, designed by Galaxy Fuse (Yinrong) is intended for safeguarding low voltage installations with low expected short-circuit scenarios. The 160A NH00 gG Knife-Blade HRC Fuse is compatible with various operating classes, including gG/gL, aM, and aR. The 160A NH00 gG Knife-Blade HRC Fuse features blade terminals and conforms to standard size specifications for global acceptance.The 160A NH00 gG Knife-Blade HRC Fuse is offered in a wide range of amperage ratings from 4A to 160A,catering to diverse application needs such as motors,transformers,LV-net works, distribution boards,control circuits, and so on.

Send Inquiry

Product Description

Yinrong is a top fuse supplier and manufacturer of 160A NH00 gG Knife-Blade HRC Fuse in Wenzhou, Zhejiang, China. The 160A NH00 gG Knife-Blade HRC Fuse manufactured by Galaxy Fuse (Yinrong) is specifically designed to provide protection for low voltage installations where expected short-circuits are minimal. The 160A NH00 gG Knife-Blade HRC Fuse is compatible with different operating classes such as gG/gL, aM, and aR.Featuring blade terminals and a ceramic construction, the 160A NH00 gG Knife-Blade HRC Fuse is globally accepted. With amperage ratings ranging from 4A to 160A and voltage ratings ranging from 500V,690V and 1140V, the 160A NH00 gG Knife-Blade HRC Fuse caters to various application requirements,including motors, transformers, power rectifier, UPS, distribution boards, control circuits, and solid state relays.

Rated Voltage

500V/690V

Rated Current

4-160A

Breaking Capacity

500V-120KA/690V-50KA

Operating Class

gG/gL;aR;aM

Pole

Support 1P/3P Fuse Holder

Standard/Compliance

-IEC 60269-2

-GB/T13539.2

Certifications

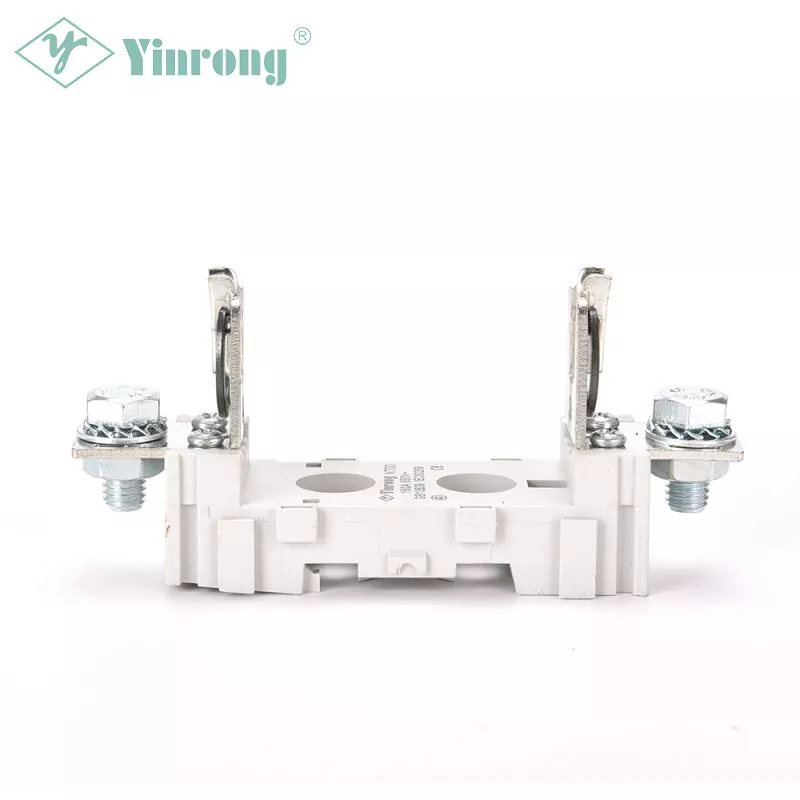

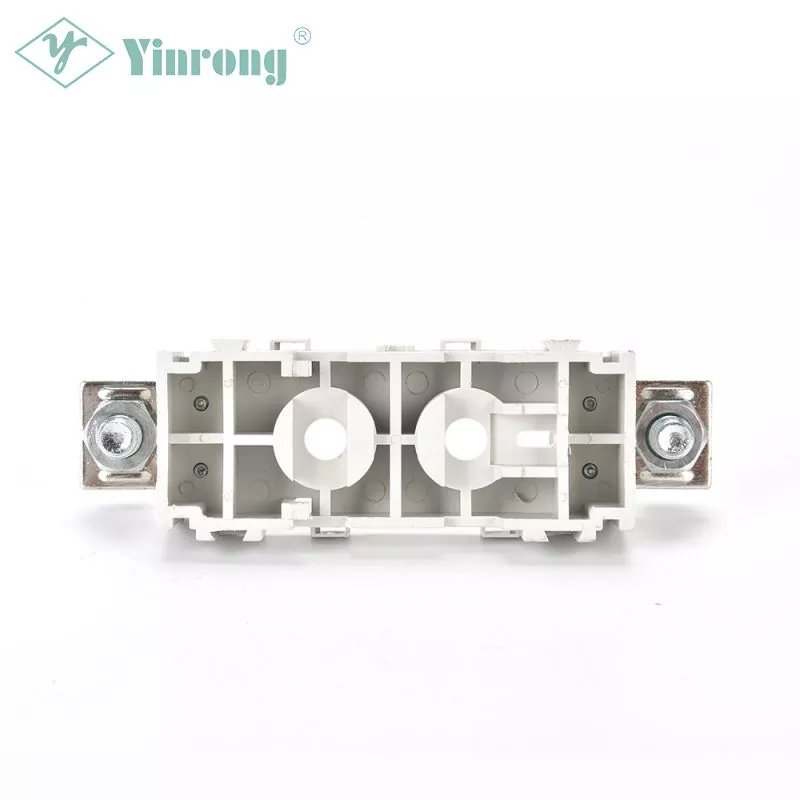

Compatible Fuse Holder

NH00Y

NH00Y-3P

Optional Accessory

NH Fuse Handle(Extractor)

Applications of 160A NH00 gG Knife-Blade HRC Fuse

- General industrial application

- Motor drive

- LV networks

- Electric cabinet

- Solid state relays

- Semiconductor devices

-Power rectifier

- Uninterruptible Power System

Country of Origin

People’s Republic of China

Parameters

Model/Size	Rated Voltage (V)	Rated Current (A)

NH00	500V/690V	4,6,10,16,20,25,32,40,50,63,80,100,125,160

Overall Dimension
A	D	E	H	H1	H2
78	53	30	60	15	48

Model	Rated Voltage	Rated Current	Overall Dimension
YR:Sist101	690V	160A	Fig.2

Sizes

Curve Characteristic
