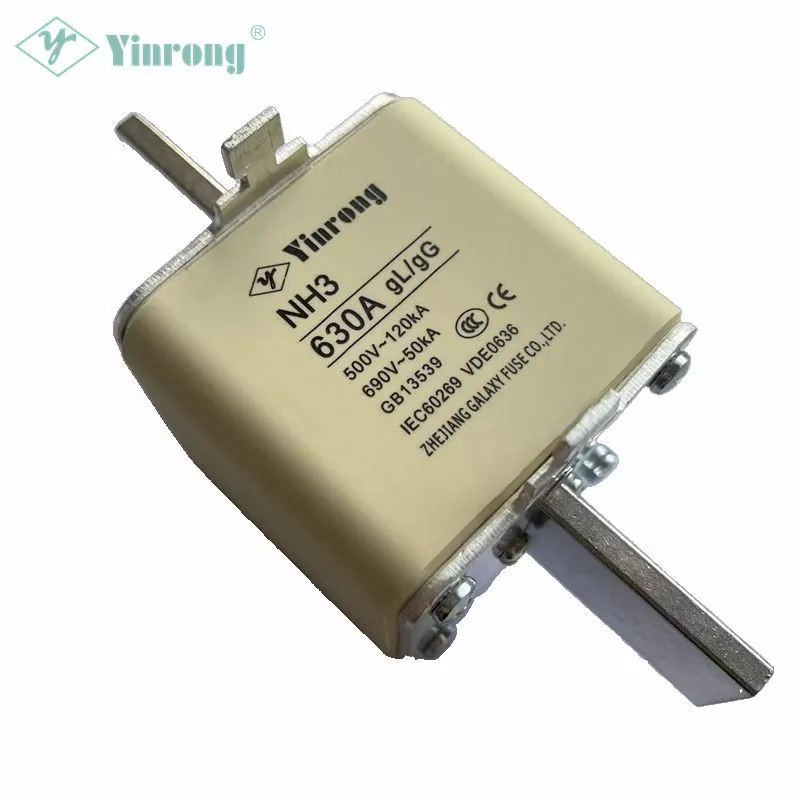

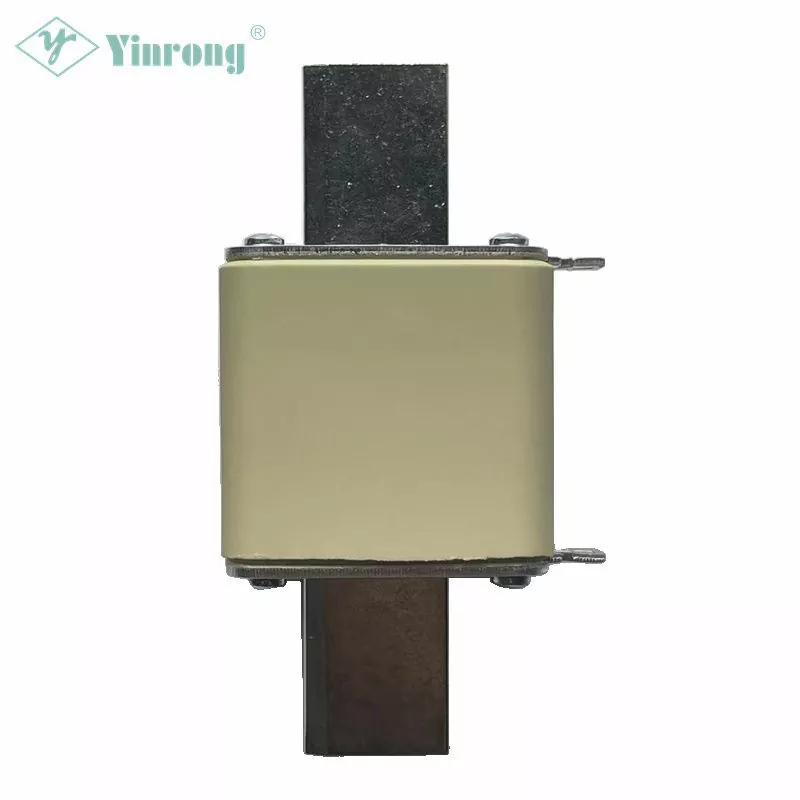

630A NH3 gG Knife-Blade HRC Fuse

Zhejiang Galaxy Fuse Co., Ltd, also known as Yinrong, is a renowned expert in the field of fuses, with over 40 years of experience in manufacturing 630A NH3 gG Knife-Blade HRC Fuses. These fuses are specifically designed to provide reliable protection to low voltage electrical systems against short-circuit incidents with low expected fault currents. The 630A NH3 gG Knife-Blade HRC Fuse is suitable for various operating classes such as gG/gL, aM, and aR, ensuring optimal performance. With standardized blade contacts and size specifications, the 630A NH3 gG Knife-Blade HRC Fuse is widely recognized and accepted in global markets.The 630A NH3 gG Knife-Blade HRC Fuse is available in a wide range of amperage ratings from 200A to 630A, which makes the 630A NH3 gG Knife-Blade HRC Fuse versatile for different scenarios such as motors,transformers, low voltage networks, distribution boards, and control circuits.

Send Inquiry

Product Description

Zhejiang Galaxy Fuse Co., Ltd, also known as Yinrong, is an experienced Chinese manufacturer of 630A NH3 gG Knife-Blade HRC Fuses with over 40 years of expertise. The 630A NH3 gG Knife-Blade HRC Fuses are specially designed to provide protection to low voltage electrical systems against short-circuit incidents with low expected fault currents. The 630A NH3 gG Knife-Blade HRC Fuses can be used in various operating classes, such as gG/gL, aM, and aR, ensuring reliable protection. With standardized blade contacts and size specifications, the 630A NH3 gG Knife-Blade HRC Fuse has gained wide acceptance in global markets. The 630A NH3 gG Knife-Blade HRC Fuse is available in a range of amperage ratings, from 200A to 630A, making it suitable for diverse applications such as motors, transformers, low voltage networks, distribution boards, and control circuits.

Rated Voltage

500V/690V

Rated Current

200-630A

Breaking Capacity

500V-120KA/690V-50KA

Operating Class

gG/gL;aR;aM

Pole

Support 1P/3P Fuse Holder

Standard/Compliance

-IEC 60269-2

-GB/T13539.2

Certifications

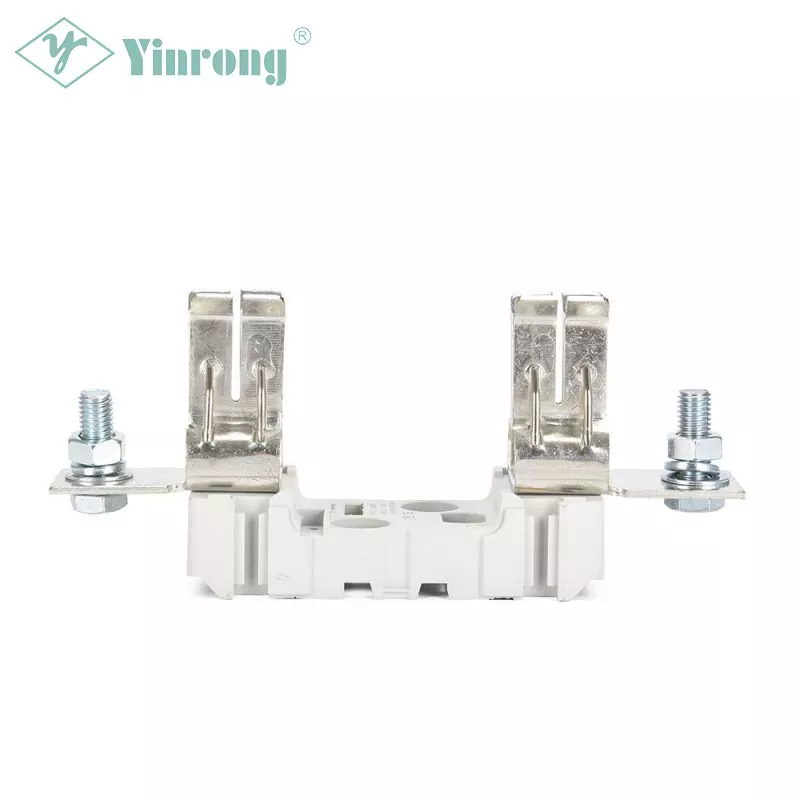

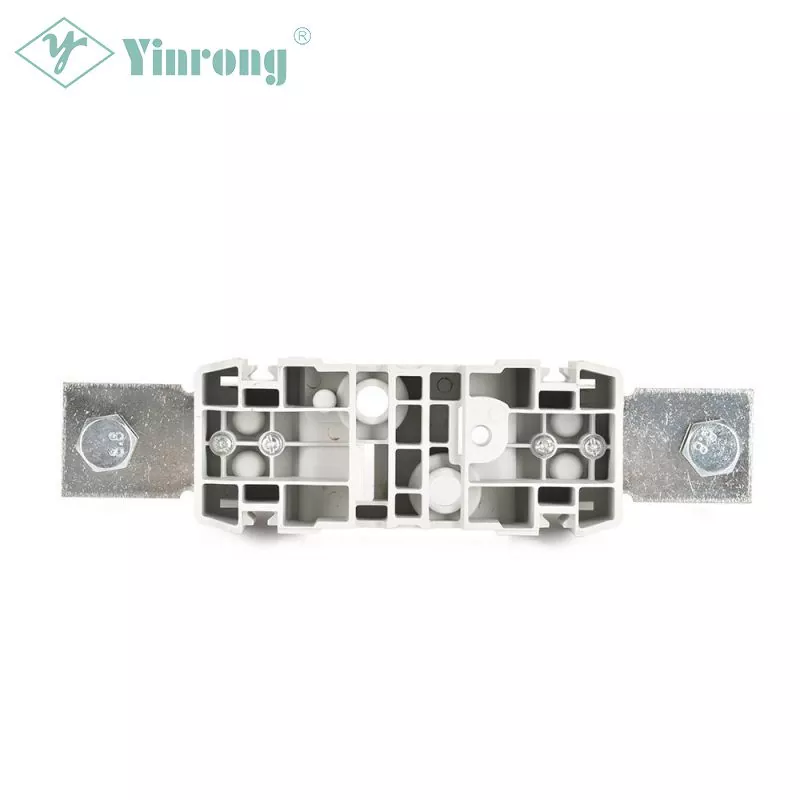

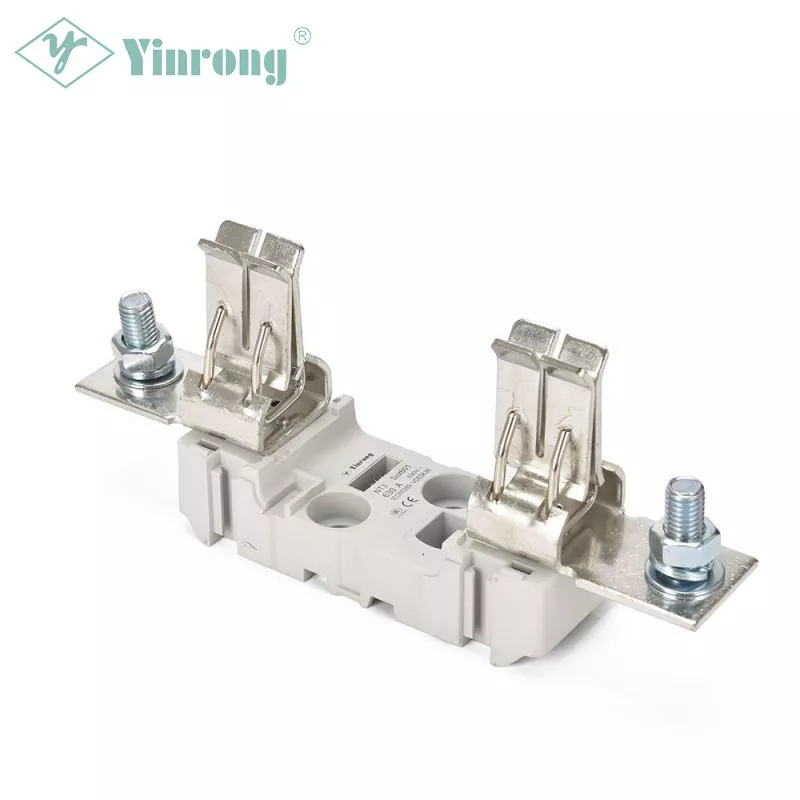

Compatible Fuse Holder

NH3Y

NH3Y-3P

Optional Accessory

NH Fuse Handle(Extractor)

Applications of 630A NH3 gG Knife-Blade HRC Fuse

- General industrial application

- Motor drive

- LV networks

- Electric cabinet

- Solid state relays

- Semiconductor devices

-Power rectifier

- Uninterruptible Power System

Country of Origin

People’s Republic of China

Parameters

Model/Size	Rated Voltage (V)	Rated Current (A)
Model/Size	Rated Voltage (V)	Rated Current (A)
NH3	500V/690V	200,224,315,355,400,450,500,630,630

Overall Dimension
A	D	E	H	H1	H2
150	74	67	82	32	71

Model	Rated Voltage	Rated Current	Overall Dimension
Model	Rated Voltage	Rated Current	A	B	F	H
YR:Sist401	690V	630A	239	210	40	106

Sizes

Curve Characteristic
