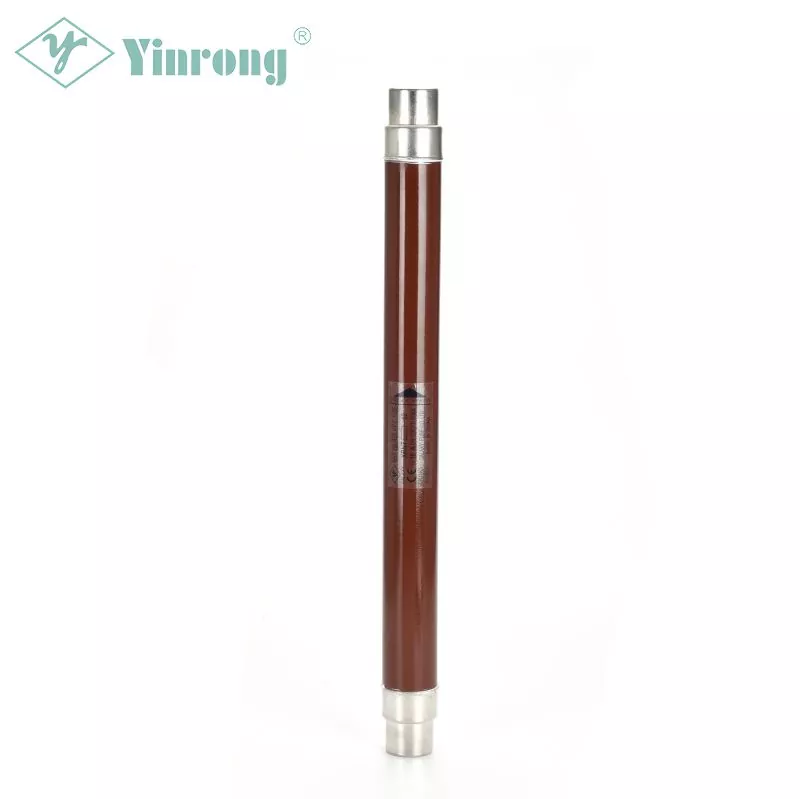

192×51mm XRNT High Voltage Current-Limiting Fuse

Yinrong is a leading China 192×51mm XRNT High Voltage Current-Limiting Fuse manufacturers. Galaxy Fuse's XRNT type HRC high voltage current-limiting fuses are designed for convenient insertion and removal during installation. The 192x51mm XRNT high voltage current-limiting fuses are made of both high-resistance and low-resistance metal wire and are sealed in a fuse tube filled with chemically treated high-purity quartz sand. The 192x51mm XRNT high voltage current-limiting fuse tube is composed of heat-resistant materials such as high-duty ceramic or epoxy glass. In the event of a fault circuit causing an arc, the quartz sand immediately extinguishes the arc.

Send Inquiry

Product Description

Yinrong is 192×51mm XRNT High Voltage Current-Limiting Fuse manufacturers and suppliers in China who can wholesale 192×51mm XRNT High Voltage Current-Limiting Fuse. Galaxy Fuse's XRNT type of high voltage HRC current limiting fuses feature an insert installation design that makes them easy to install and remove. The 192×51mm XRNT High Voltage Current-Limiting Fuse consist of high-resistance and low-resistance metal wires sealed in a fuse tube filled with chemically treated high-purity quartz sand. The heat-resistant fuse tube is made of high-duty ceramic or epoxy glass. In the event of a fault circuit causing an arc, the chemically treated quartz sand immediately extinguishes the arc.

Standard/Compliance

-IEC 60282-1

Recommended Accessories

XRNT Clips

Features&Benefits

- High Drop-out Current

- Good performance and fast action when overload and short-circuit occurs

- Comply with International Standard

Applications of 192×51mm XRNT High Voltage Current-Limiting Fuse

- Transformer Protection

- Switch Protection

- Vacuum Contact Protection

Country of Origin

People’s Republic of China

Parameters

Model/Size	Rated Voltage(KV)	Rated Current(A)	Rated Drop-Out Current	Overall Dimension
Model/Size	Rated Voltage(KV)	Rated Current(A)	Rated Drop-Out Current	φD	L(mm)
XRNT1	3.6	6.3,10,16,20,25,31.5,40	31.5	51	192
XRNT1	7.2	6.3,10,16,20,25,31.5,40,50,63	31.5	51	292
XRNT1	7.2	80,100,125,160	31.5	76	292
XRNT1	12	6.3,10,16,20,25,31.5,40	31.5	51	292
XRNT1	12	50,63,71,80,100	31.5	76	292
XRNT1	12	125	31.5	76	292
XRNT1	12	160,200	31.5	88	292
XRNT1	24	6.3,10,16,20,25,31.5,40	31.5	51	442
XRNT1	24	50,63,71,80,100	31.5	76	442
XRNT1	24	125	31.5	76	442
XRNT1	24	160	31.5	88	442
XRNT1	40.5	3.15,6.3,10,16,20,25	31.5	51	537
XRNT1	40.5	31.5,40	31.5	76	537
XRNT1	40.5	63	31.5	88	537

Sizes

Time-Current Characteristic

Cut-off Current Characteristic
