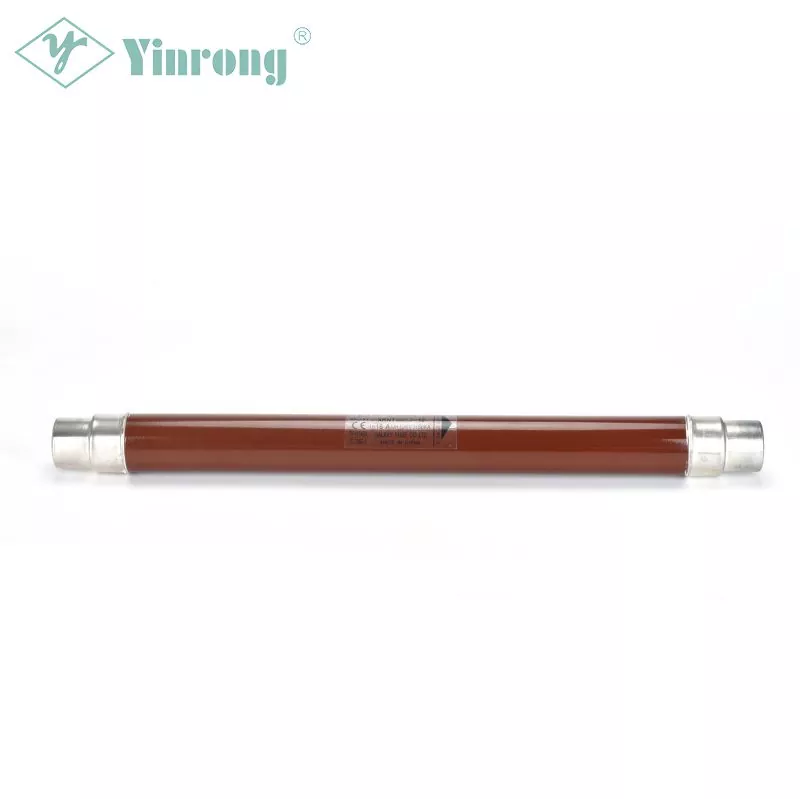

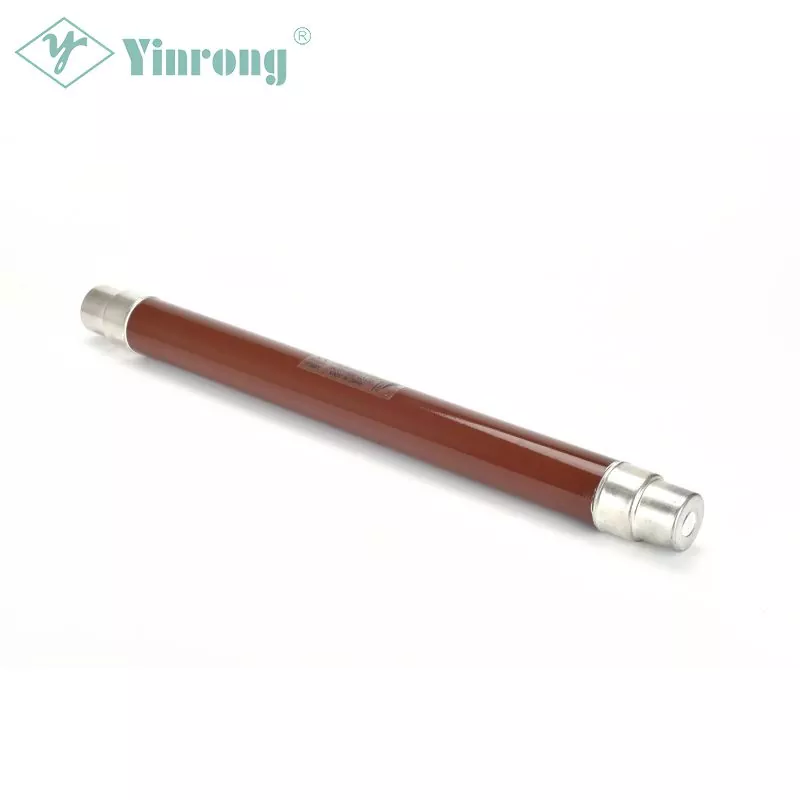

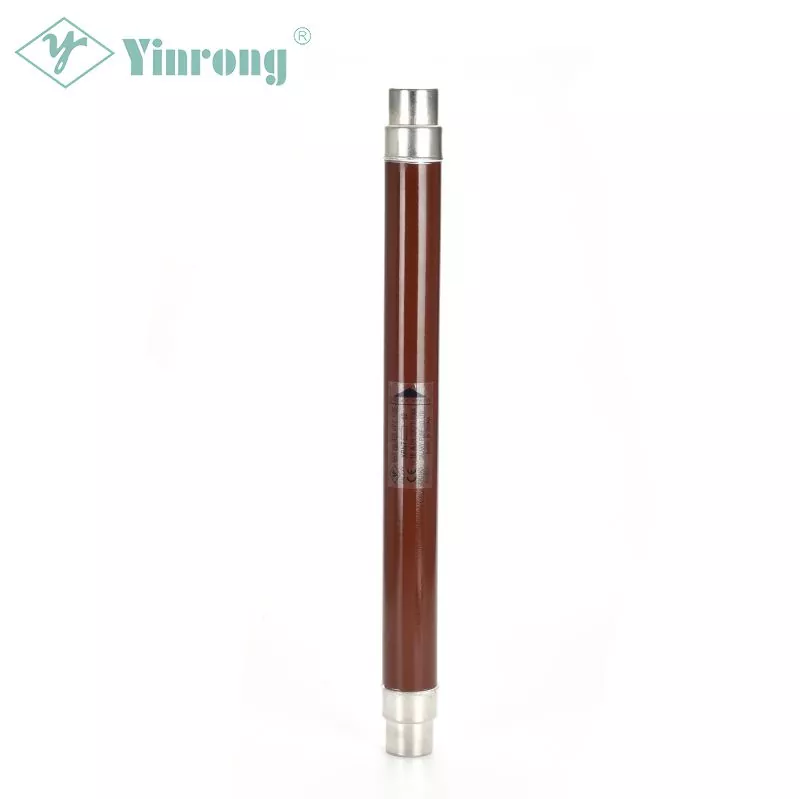

292×76mm XRNT High Voltage Current-Limiting Fuse

Yinrong is a leading China 292×76mm XRNT High Voltage Current-Limiting Fuse manufacturers. The 292×76mm XRNT High Voltage Current-Limiting Fuses from Galaxy Fuse are designed to be easily inserted and removed during installation. The 292×76mm XRNT High Voltage Current-Limiting Fuses consist of high-resistance and low-resistance metal wire sealed in a fuse tube filled with high-purity quartz sand that has been chemically treated. The tube itself is made of materials that can bear high temperatures, such as high-duty ceramic or epoxy glass. In the event of a fault in the circuit that causes an arc, the quartz sand in the fuse tube quickly extinguishes the arc.

Send Inquiry

Product Description

Yinrong is 292×76mm XRNT High Voltage Current-Limiting Fuse manufacturers and suppliers in China who can wholesale 292×76mm XRNT High Voltage Current-Limiting Fuse. The 292×76mm XRNT High Voltage Current-Limiting Fuses by Galaxy Fuse are easy to insert and remove when they need to be installed. The 292×76mm XRNT High Voltage Current-Limiting Fuses measure 292x76mm and contain both high-resistance and low-resistance metal wire. The 292×76mm XRNT High Voltage Current-Limiting Fuses are enclosed in a fuse tube filled with high-purity quartz sand that has been chemically treated. The tube itself is made of heat-resistant materials such as high-duty ceramic or epoxy glass. If a fault circuit causes an arc, the quartz sand quickly puts out the arc.

Standard/Compliance

-IEC 60282-1

Recommended Accessories

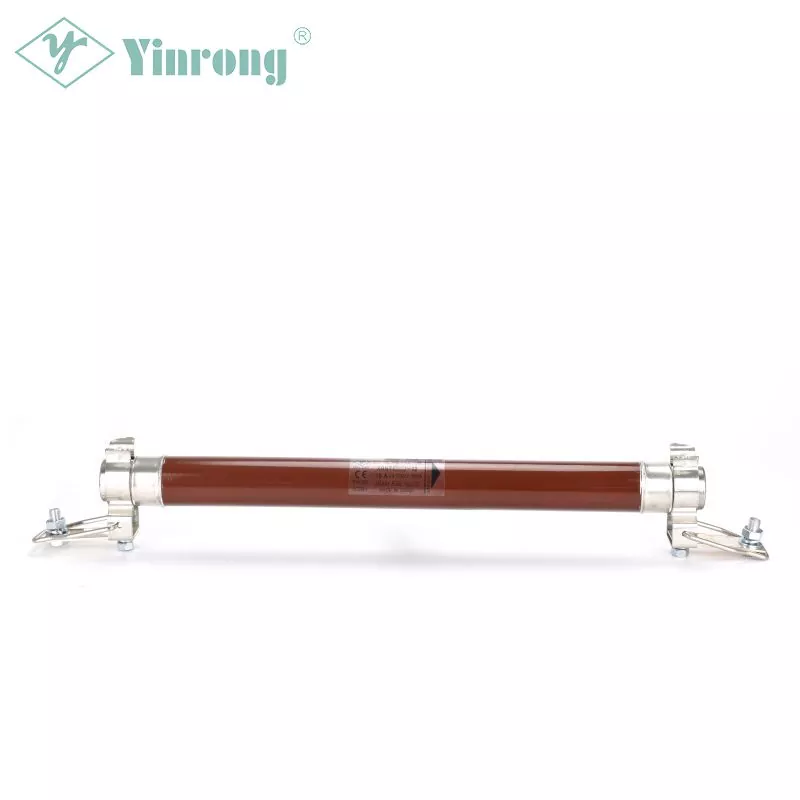

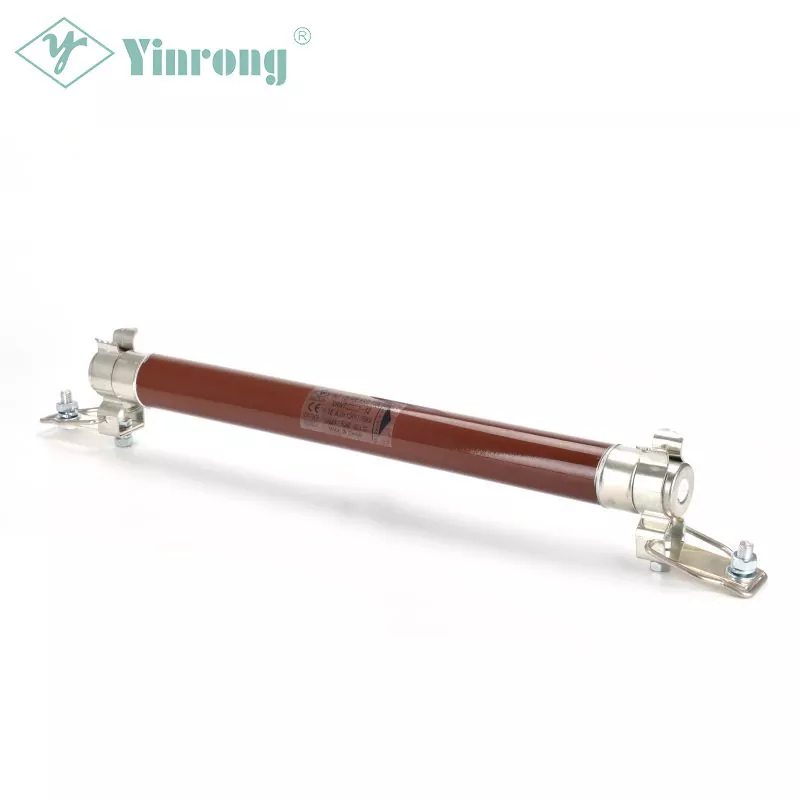

XRNT Clips

Features&Benefits

- High Drop-out Current

- Good performance and fast action when overload and short-circuit occurs

- Comply with International Standard

Applications of 292×76mm XRNT High Voltage Current-Limiting Fuse

- Transformer Protection

- Switch Protection

- Vacuum Contact Protection

Country of Origin

People’s Republic of China

Parameters

Model/Size	Rated Voltage(KV)	Rated Current(A)	Rated Drop-Out Current	Overall Dimension
Model/Size	Rated Voltage(KV)	Rated Current(A)	Rated Drop-Out Current	φD	L(mm)
XRNT1	3.6	6.3,10,16,20,25,31.5,40	31.5	51	192
XRNT1	7.2	6.3,10,16,20,25,31.5,40,50,63	31.5	51	292
XRNT1	7.2	80,100,125,160	31.5	76	292
XRNT1	12	6.3,10,16,20,25,31.5,40	31.5	51	292
XRNT1	12	50,63,71,80,100	31.5	76	292
XRNT1	12	125	31.5	76	292
XRNT1	12	160,200	31.5	88	292
XRNT1	24	6.3,10,16,20,25,31.5,40	31.5	51	442
XRNT1	24	50,63,71,80,100	31.5	76	442
XRNT1	24	125	31.5	76	442
XRNT1	24	160	31.5	88	442
XRNT1	40.5	3.15,6.3,10,16,20,25	31.5	51	537
XRNT1	40.5	31.5,40	31.5	76	537
XRNT1	40.5	63	31.5	88	537

Sizes

Time-Current Characteristic

Cut-off Current Characteristic
